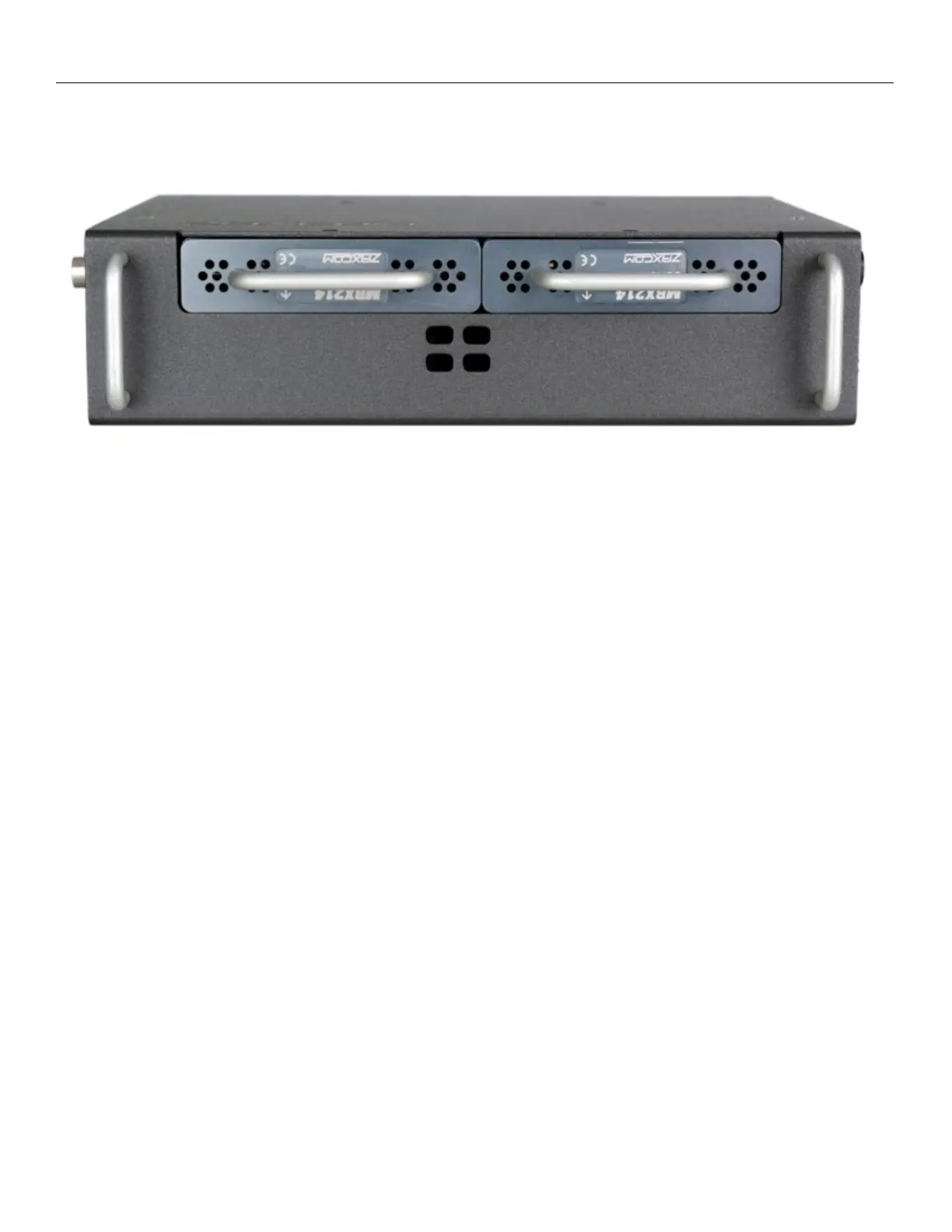

Zaxcom Nova Rear

Rear

Internal Receiver Module x 2

Fan Vents - The fan speed is adjustable in the ENG menu

Please Note – Receiver arrows point down!
