AES Digital Input / Output Connectors (DB-15)
Nova uses a mini DB-15 (DE-15) connector for the AES (digital) inputs and outputs. This connector is where a GPI
remote roll switch would be connected to.

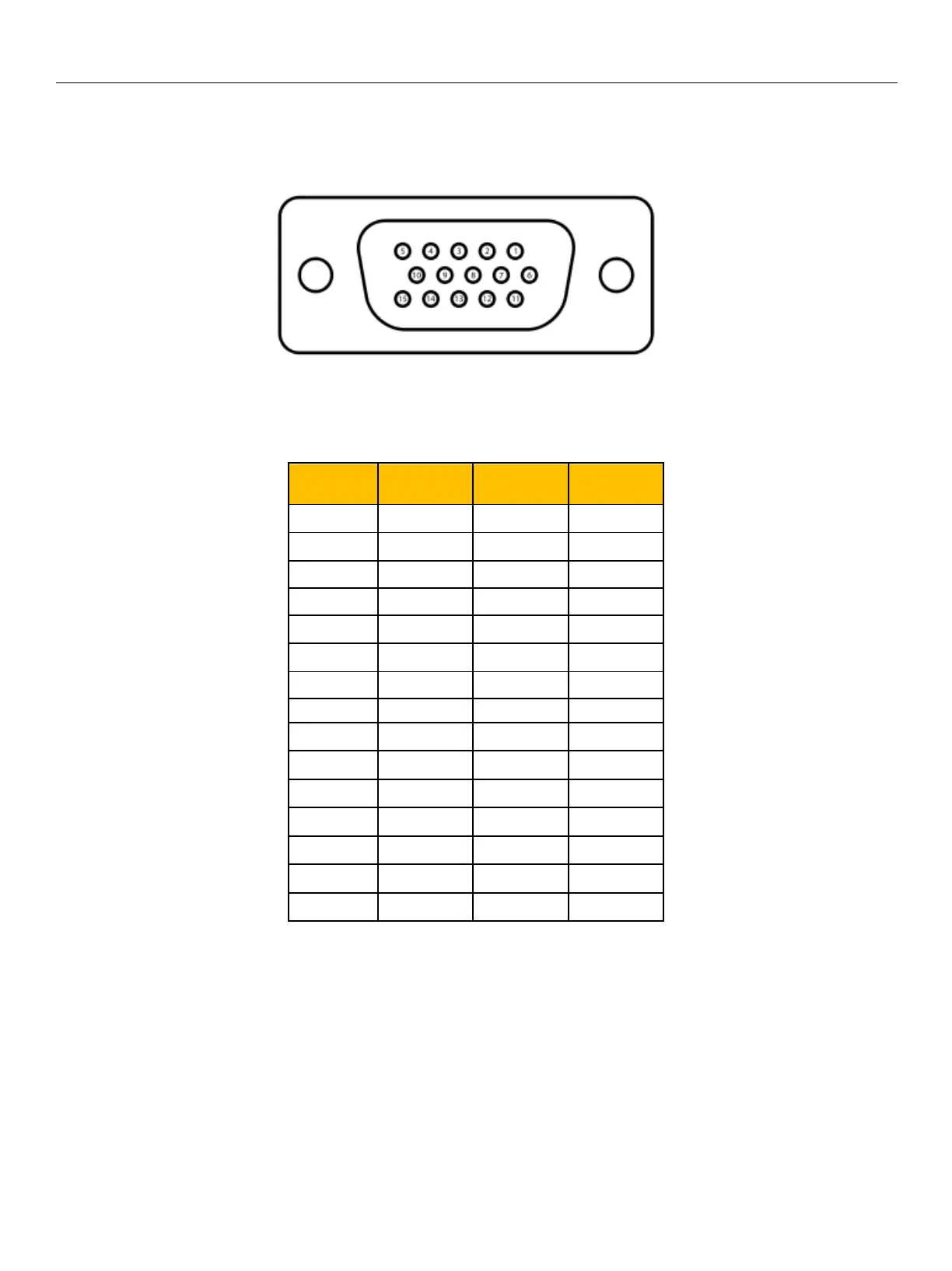

Top row pins: 5, 4, 3, 2, 1
Middle row pins: 10, 9, 8, 7, 6
Bottom row pins: 15, 14, 13, 12, 11
DB -15 Pin
Number
IN / OUT
AES
PAIRS
Connects to
XLR Pin
1 IN 3 / 4 2 (+)
2 IN 1 / 2 2 (+)
3 OUT 5 / 6 2 (+)
4 GPI OUT
5 N/C
6 OUT 1 / 2 3 (--)
7 OUT 1 / 2 2 (+)
8 GROUND GROUND 1
9 OUT 3 / 4 3 (--)
10 OUT 3 / 4 2 (+)
11 IN 3 / 4 3 (--)
12 IN 1 / 2 3 (--)
13 OUT 5 / 6 3 (--)
14 GPI IN
15 N/C
