Zebra 105SL Plus Quick Reference Guide

Load Ribbon
18
P1056467-001 105SLPlus™ Quick Reference Guide 9/28/12

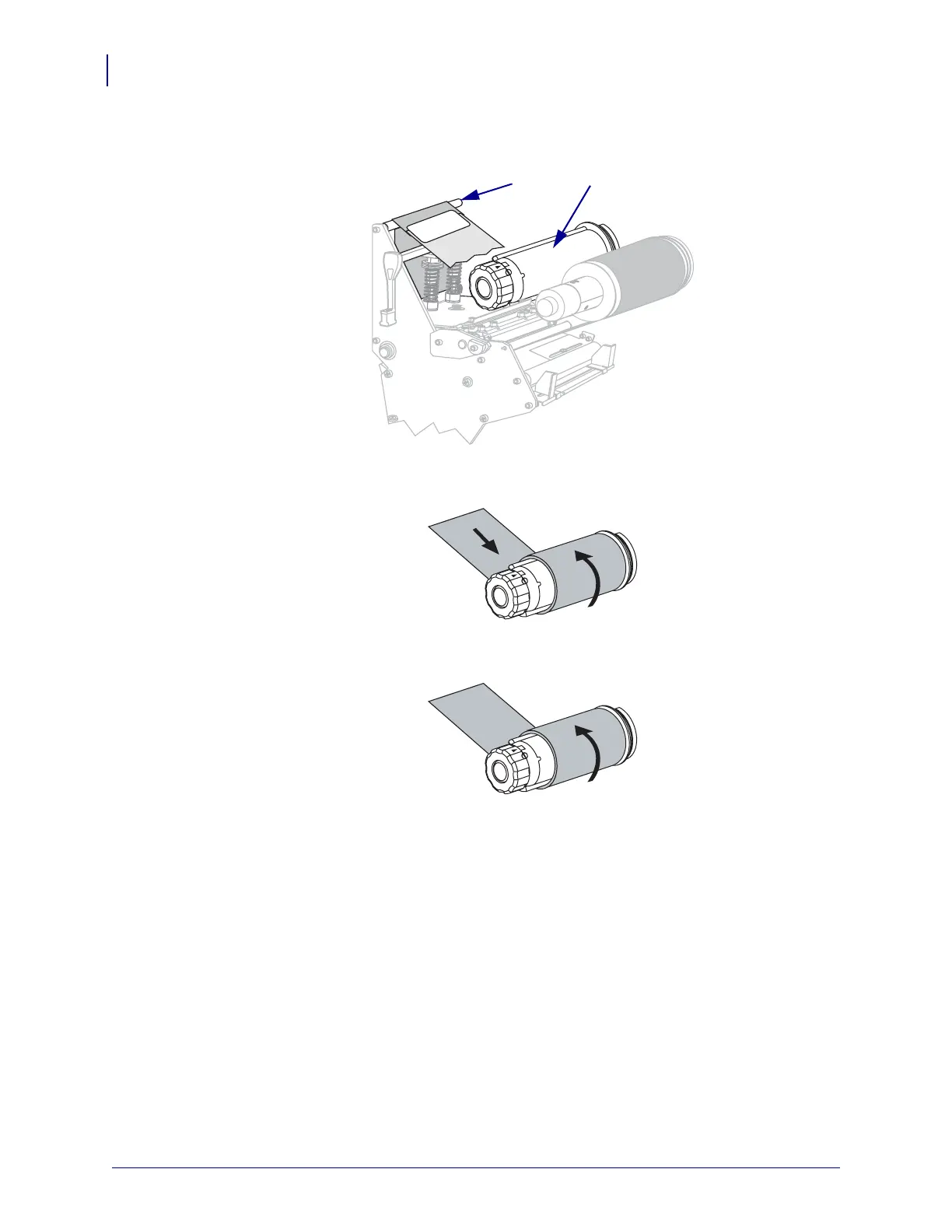

9. Bring the ribbon leader over the upper ribbon roller (1) and then toward the ribbon take-up
spindle (
2).
10. Wind the ribbon leader and attached ribbon counterclockwise around the ribbon take-up
spindle.
11. Rotate the spindle counterclockwise several turns to wind the ribbon and remove any
slack.
21

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
