Platen Replacement 980358-304A
Preparations
Open the printer by pulling the release latches forward, then lifting the top cover.
Removal

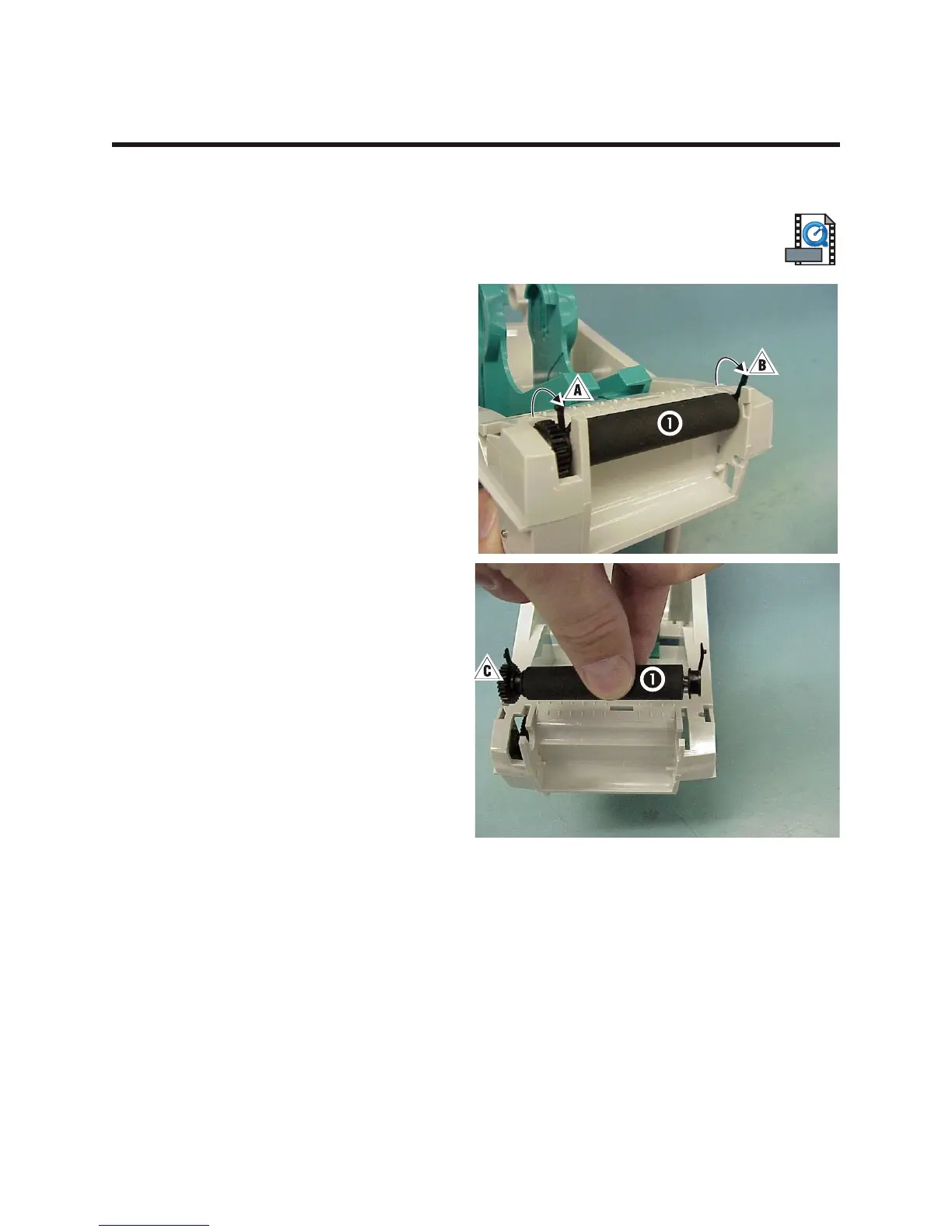

1. Use the blade of a small slotted screw driver
to pry the pegs !" free from their holes
and rotate the bearing forward a quarter
turn.
2. Lift the platen 1 free of the printer.
Assembly
1. Align the platen so that its gear # is to the
left.
2. Put each bearing into its slot.
3. Rotate the tabs backward until their pegs snap
into their holes.
52 980358-001 Rev. B
