Zebra FX7500 Deployment Guide

Setting Up Cloud Connect for RFID
23
Data Section
The data section of the Cloud Connect for RFID JSON configuration holds the JSON object for configuring
the Data interface. The JSON schema for the Data interface configuration is shown in Figure 8.

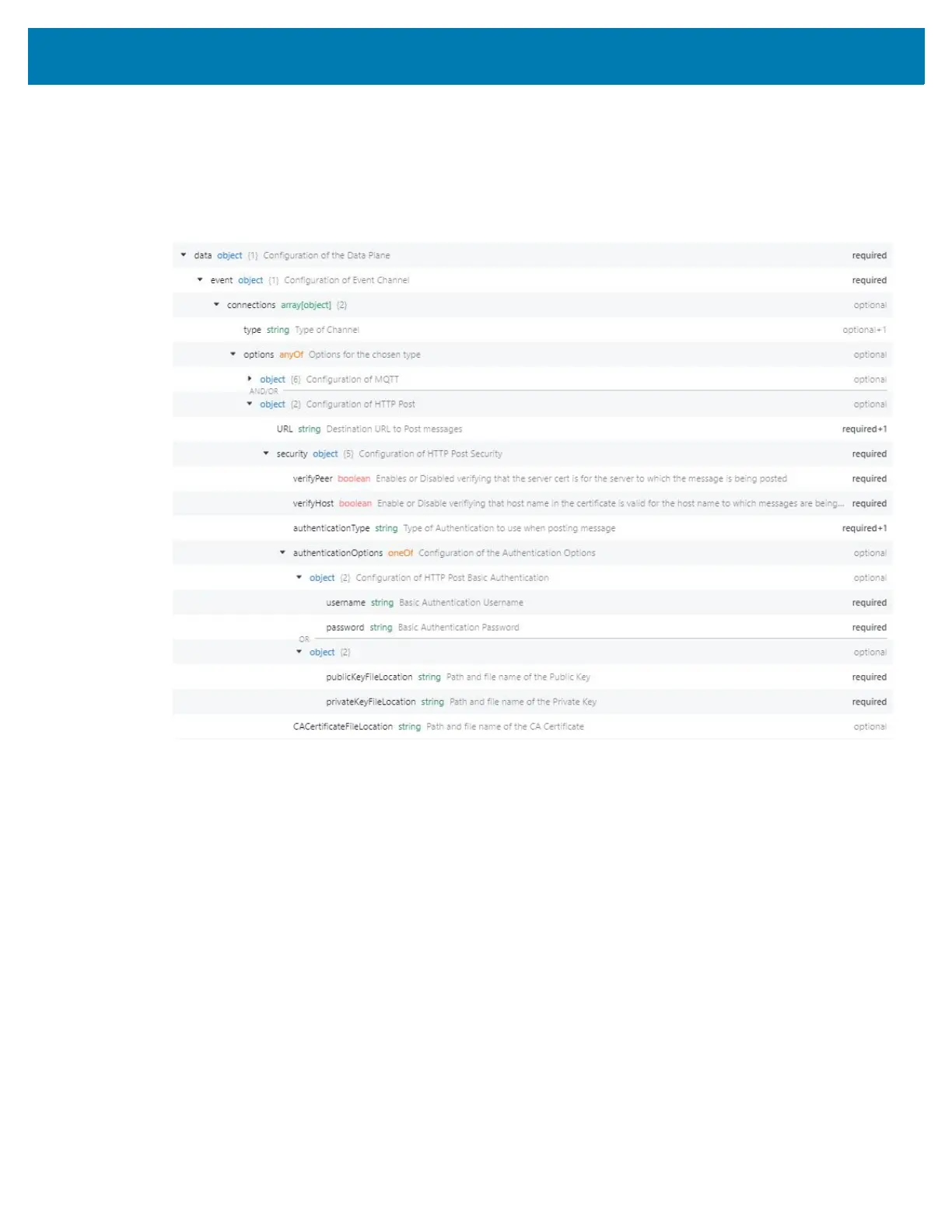

Figure 8 JSON Schema for Data Interface Configuration
The Data interface can be configured to send data to either the Zebra Data Services or send it locally to a
HTTP/HTTPS server as POST requests. The sample configurations for both are shown below.

Zebra FX7500 Specifications

General

Interface	USB
Product color	White
LED indicators	Activity, Power, Status
Housing material	Aluminium, Metal, Plastic
Battery type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84719000

Weight and Dimensions

Depth	43.2 mm
Width	149.9 mm
Height	195.6 mm
Weight	860 g
