Zebra GK420d

57
Maintenance
Replacing the Printhead
8/4/10 GK420d™ User Guide 980608-001 Rev. C

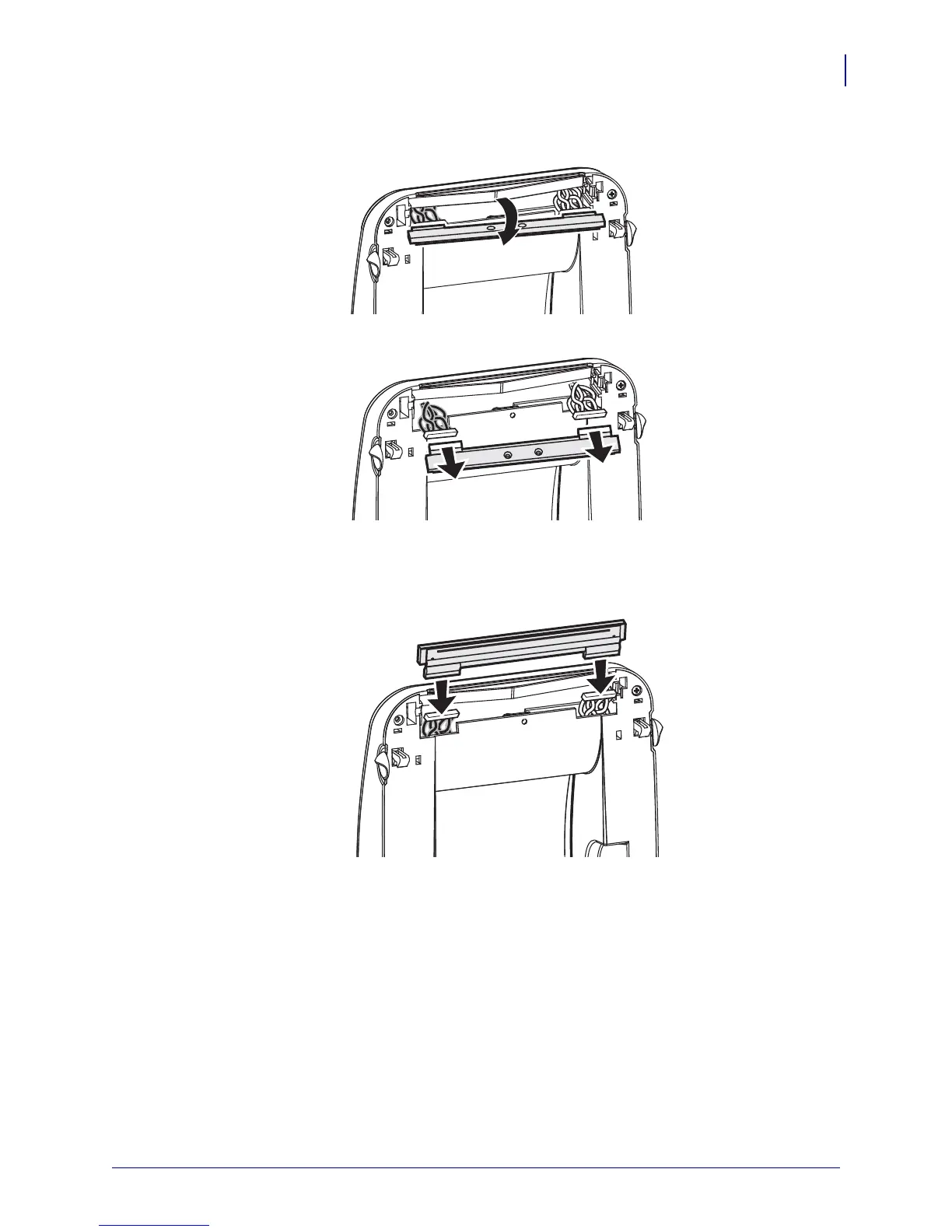

2. Pull the printhead forward and pull it free of the top case if necessary.
3. Unplug both bundles of printhead wires from their connectors.
1. Align the printhead to plug the left and right connectors into the wire bundles.
