Zebra GK420d

Serial Port Interface
78
980608-001 Rev. C GK420d™ User Guide 8/4/10

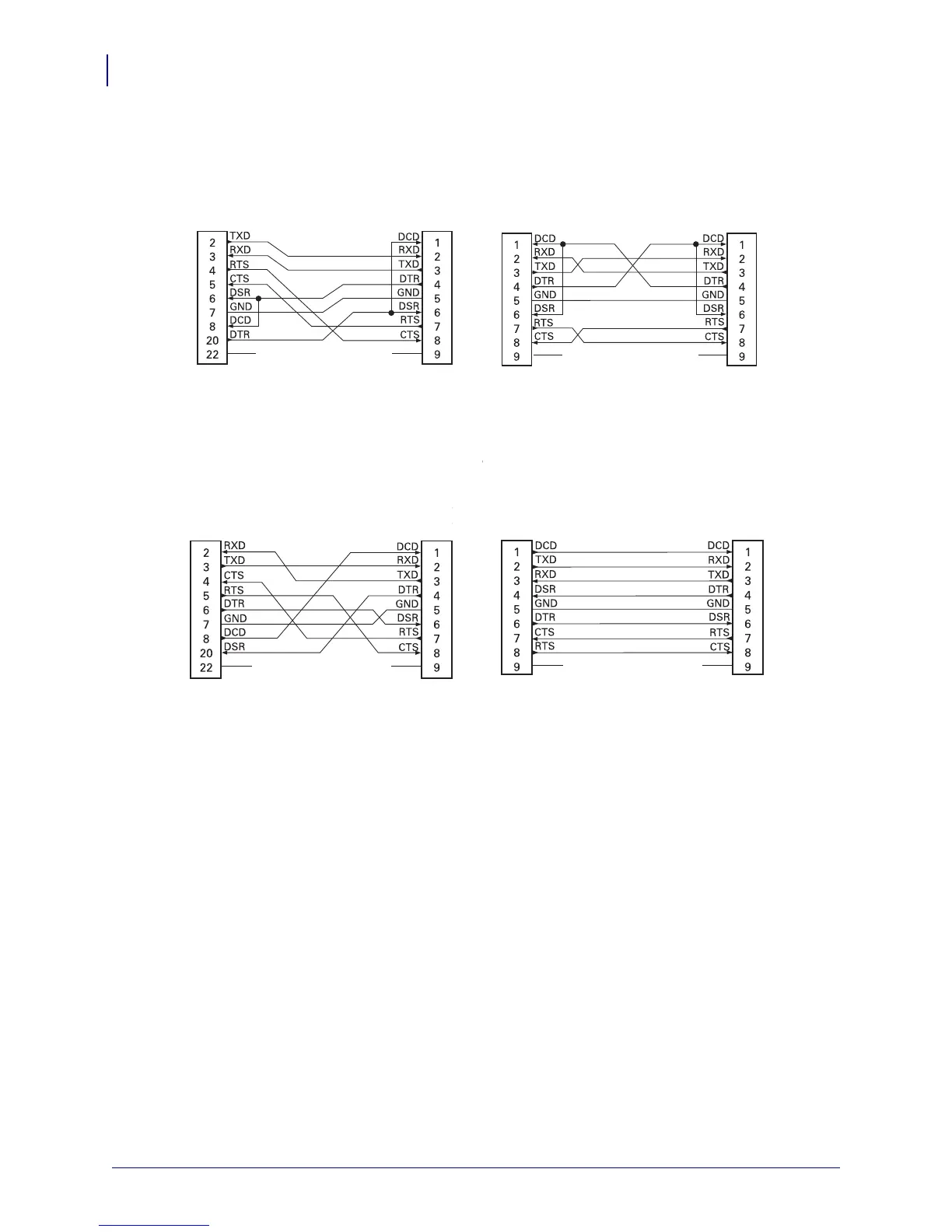

Connecting the Printer to a DTE Device
Connecting the Printer to a DCE Device
DB-25S
Connector
to DTE Device (PC)
DB-9P
Connector
to Printer
DB-9P
Connector
to Printer
DB-9S
Connector
to DTE Device (PC)
DB-9P
Connector
to Printer
DB-9P
Connector
to Printer
DB-25S
Connector
to DCE Device
DB-9S
Connector
to DCE Device
