Ethernet Interface
98
P1032729-003 Rev. A GT800™ Thermal Transfer Printer User Guide 9/30/2014

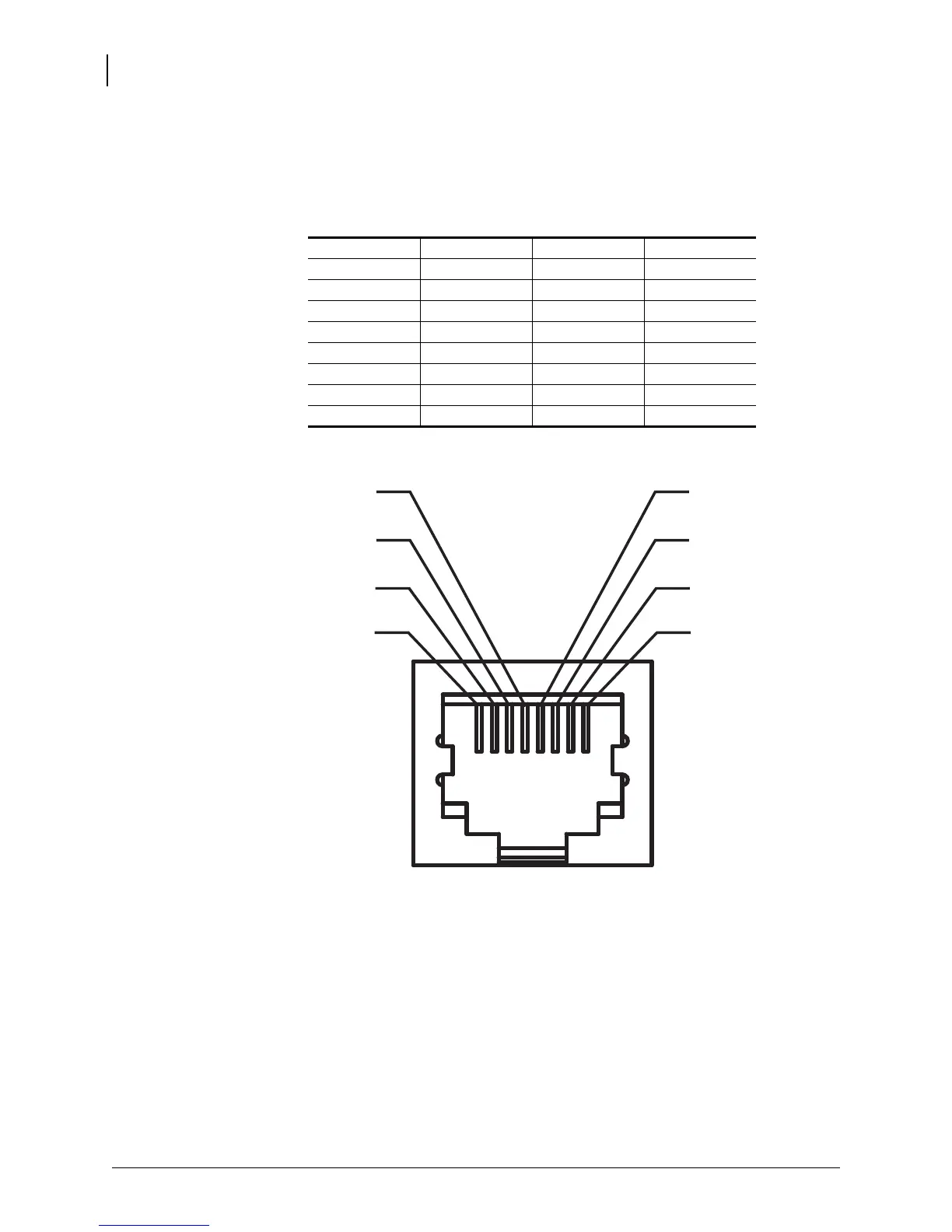

Ethernet Interface
This interface requires a UTP RJ45 Ethernet cable rated CAT-5 or better.
The table below provides the cable’s pinout assignments.
Signal Pin Pin Signal
Tx+ 1 1 Tx+
Tx- 2 2 Tx-
Rx+ 3 3 Rx+
—4 4—
—5 5—
Rx- 6 6 Rx-
—7 7—
—8 8—
4
3
2
1
5
6
7
8
