Loading Transfer Ribbon
18
P1032729-003 Rev. A GT800™ Thermal Transfer Printer User Guide 9/30/2014

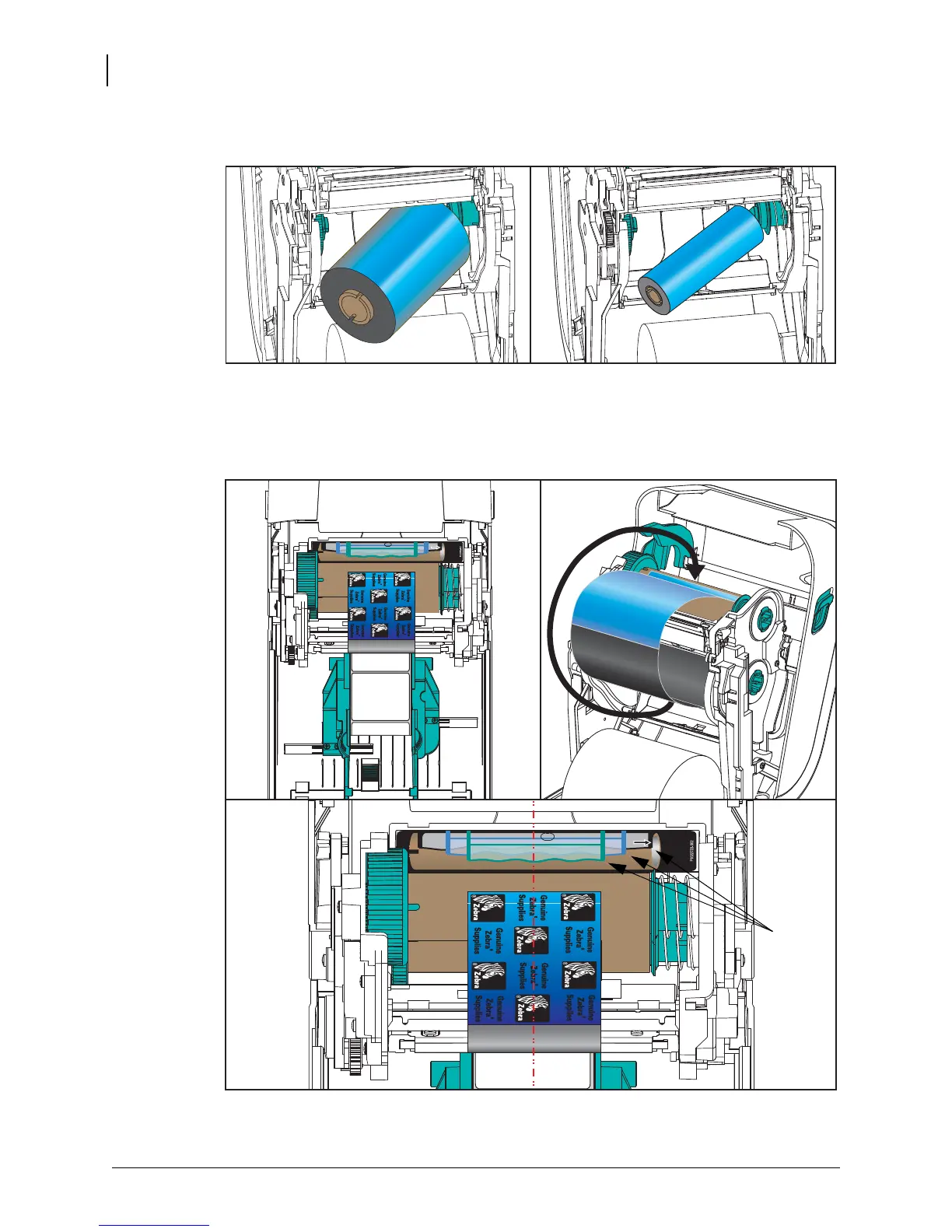

2. Place a new ribbon roll on printer’s lower ribbon supply spindle. Push it onto the right
spindle and lock the left side the same as the take-up mounting the take-up core.
3. Attach the ribbon to the take up core. Use the adhesive strip on new rolls; otherwise, use a
thin strip of tape. A ribbon core graphic with the three (3) standard genuine Zebra
®
ribbon
widths helps you visually align the transfer ribbon to the media and supply ribbon roll.
Align the ribbon so that it will be taken straight onto the core.
Top View
Align
Here
for
Genuine
Zebra®
Ribbon
To Next Page
