Zebra HC100 Wireless Quick Start Guide

45
PAX4 Series
Print Engine Installation
3/3/11 Wireless Quick Start Guide P1001060-006

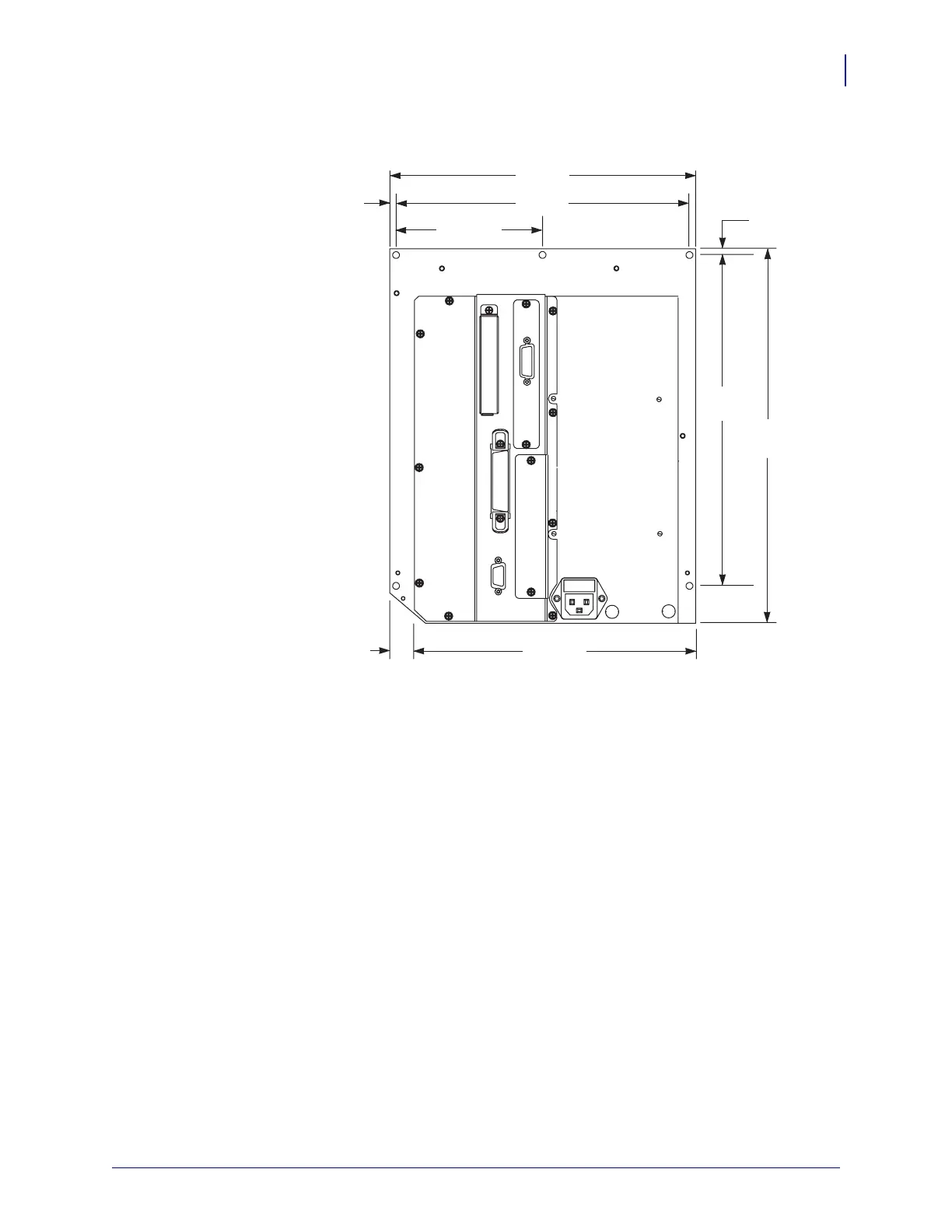

Figure 10 • Rear View of Right-Hand Print Engine (170PAX4)
9.646 in.
(245 mm)
9.252 in.
(235 mm)
4.626 in.
(117.5 mm)
0.197 in.
(5 mm)
0.451 in.
(11.45 mm)
8.748 in.
(222.2 mm)
0.197 in.
(5 mm)
10.433 in.
(265 mm)
11.811 in.
(300 mm)

Zebra HC100 Specifications

General

Product color	Black
