Printer Overview
Printer Features
10/26/2010 KR203 Hardware Integrator Guide P1028247-001 Rev. B

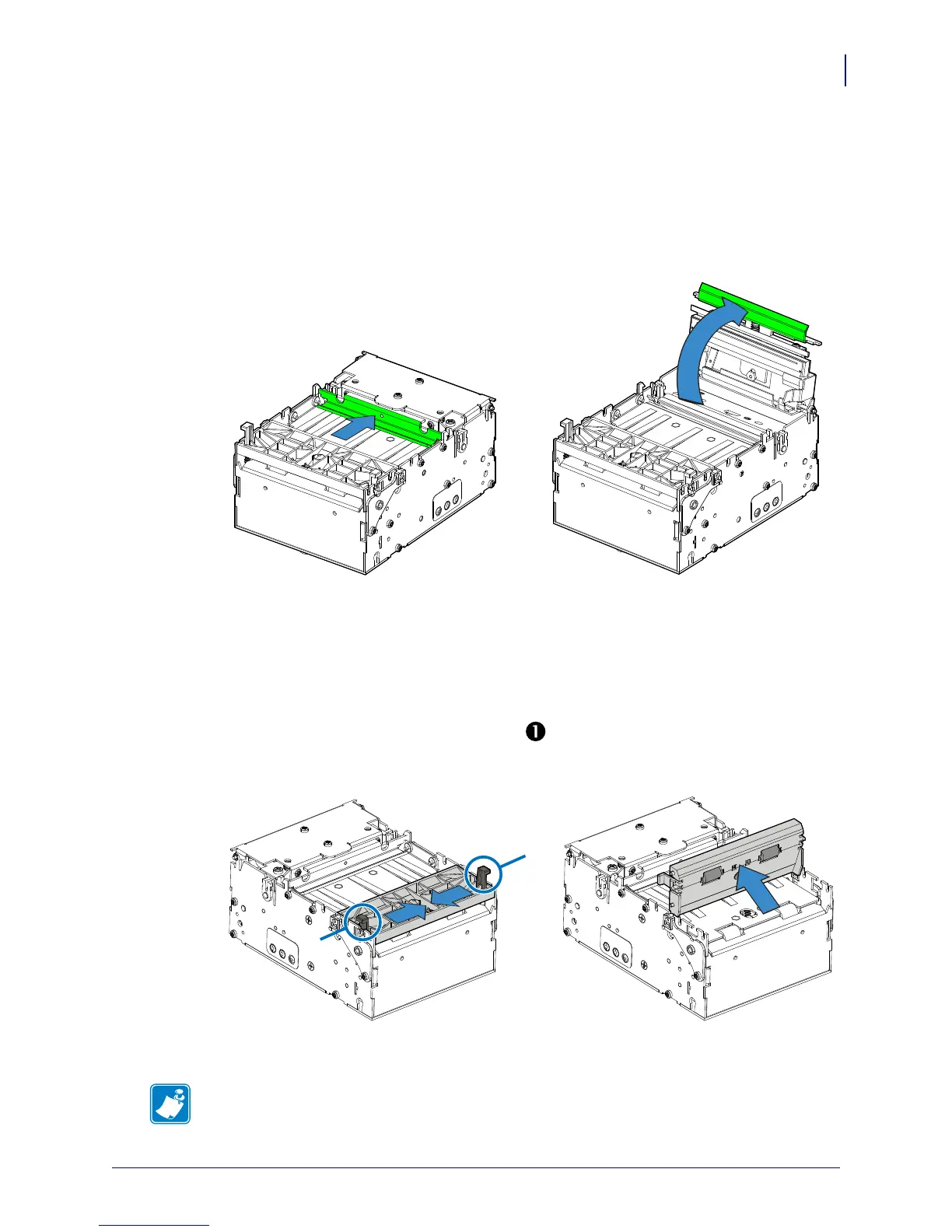

Opening the Printhead
When cleaning or servicing the printer, it is sometimes necessary to access the printhead.
1. Press the green printhead release bar to unlock the printhead.
2. Rotate the printhead assembly upward.
Opening the Presenter
When cleaning or servicing the printer, it is sometimes necessary to access the presenter.
1. Squeeze the two presenter locking tabs together to unlock the presenter assembly.
2. Rotate the presenter assembly upward.
Note • When closing the presenter, make sure to close securely with an audible click on
both locking tabs.
Figure 3-5 • Opening the Printhead
Figure 3-6 • Opening the Presenter
