Media Mounting Considerations
32
P1028247-001 Rev. B KR203 Hardware Integrator Guide 10/26/2010
Media Supply Method
The KR203 printer supports two media supply types: outside wound roll mount; and
stacked fan-fold media. The media printing surface faces up towards the ‘top’ of the printer
and away from the body of the printer.
Media Input Aperture
The KR203 printer has a wide aperture to support a range of media mounting locations.
The media can enter the printer directly or indirectly with the addition of custom media
guides or printer roll mounting accessory kits.

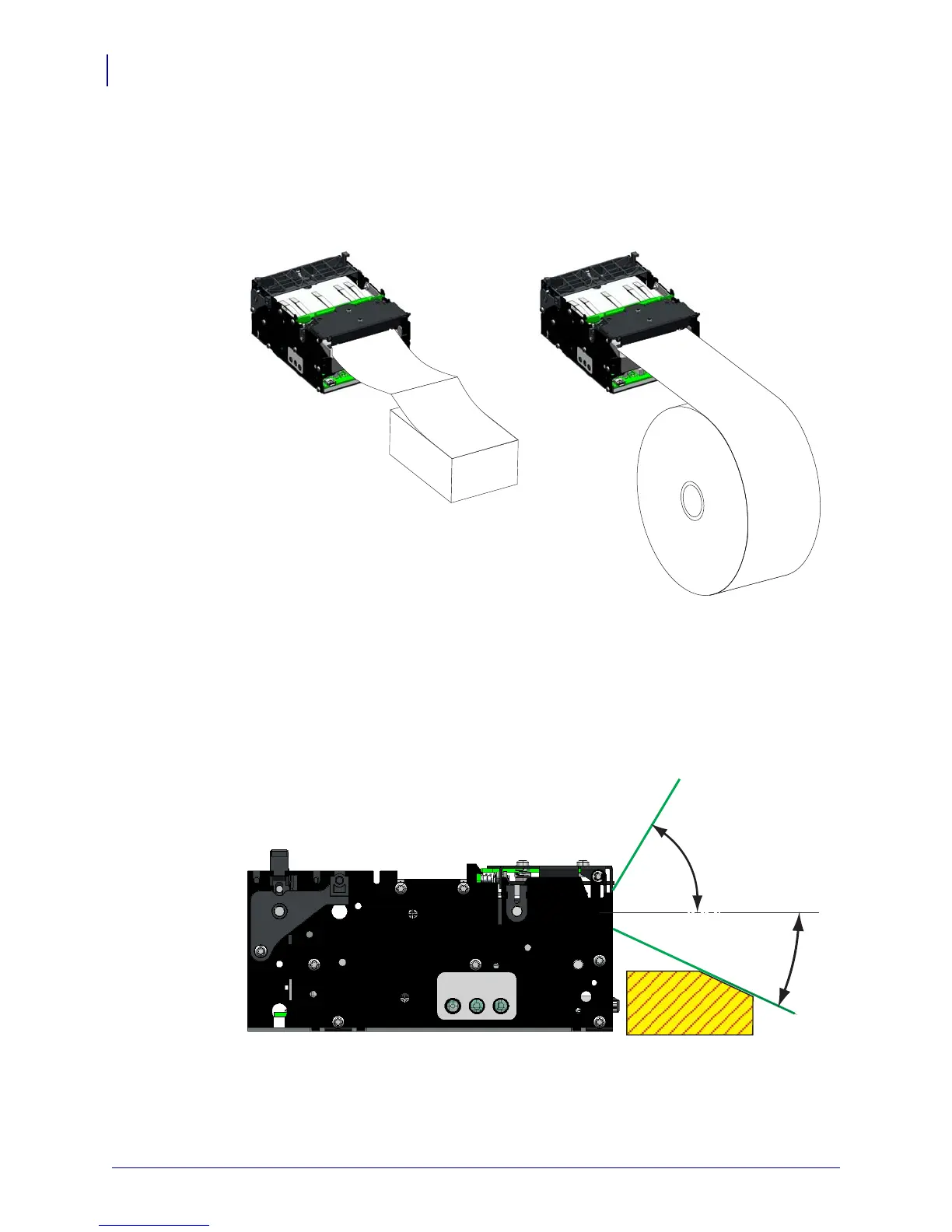

Figure 5-1 • Media Supply
Printing
Surface
Printing
Surface
Figure 5-2 • Media Input Aperture
Media In
Minimum Clearance Area for
Printer Power and Cabling
