Media Mounting Considerations
10/26/2010 KR203 Hardware Integrator Guide P1028247-001 Rev. B
The direct media input (or angle of contact with media guides - not shown here) will
change as the media is being consumed.

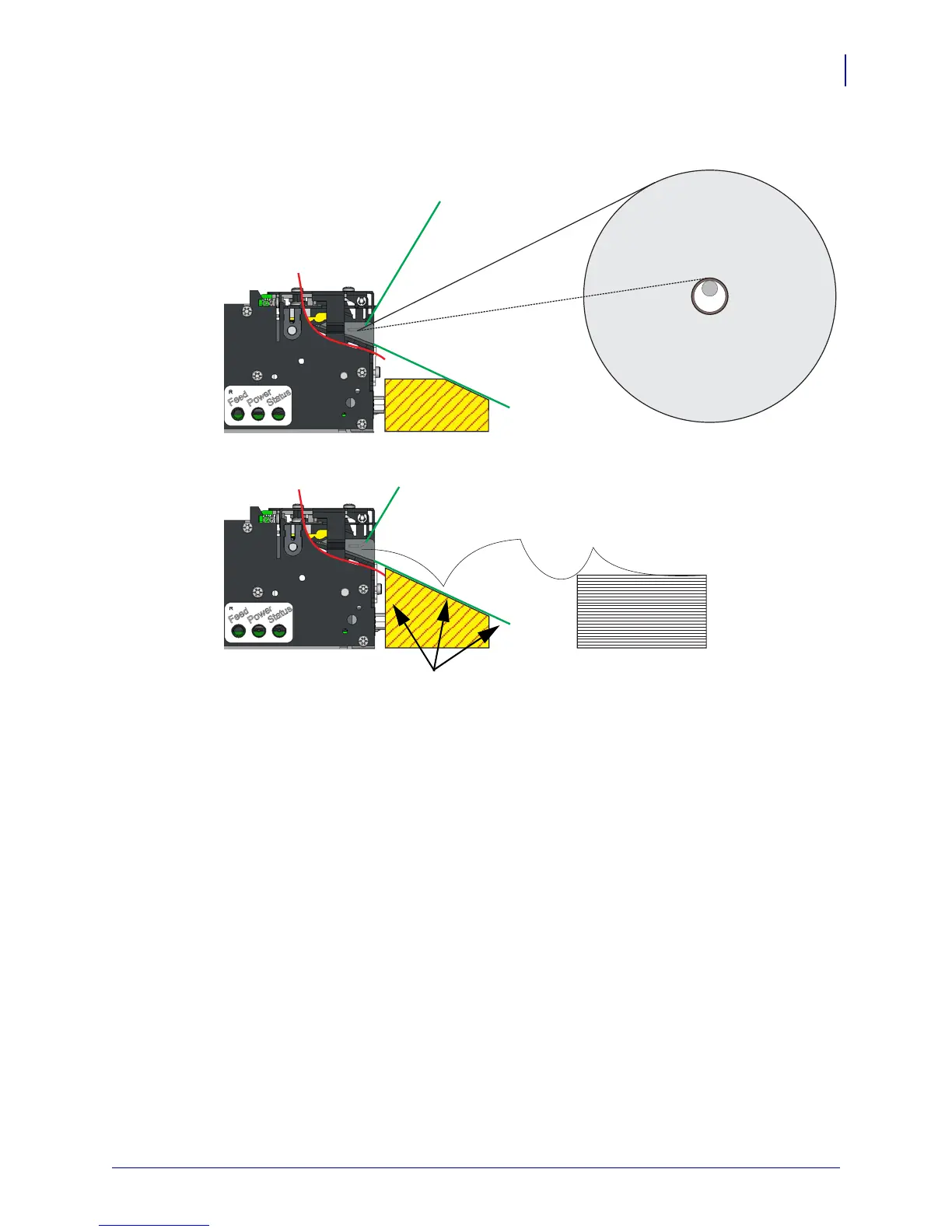

Figure 5-3 • Media Aperture
Minimum Clearance Area for
Printer Power and Cabling
This area should have a continuous physical barrier separating the media and
folds from binding in the cabling, printer body, kiosk chassis seams, etc.
