Accessories
Universal Roll Holder – P1014125
56
P1028247-001 Rev. B KR203 Hardware Integrator Guide 10/26/2010

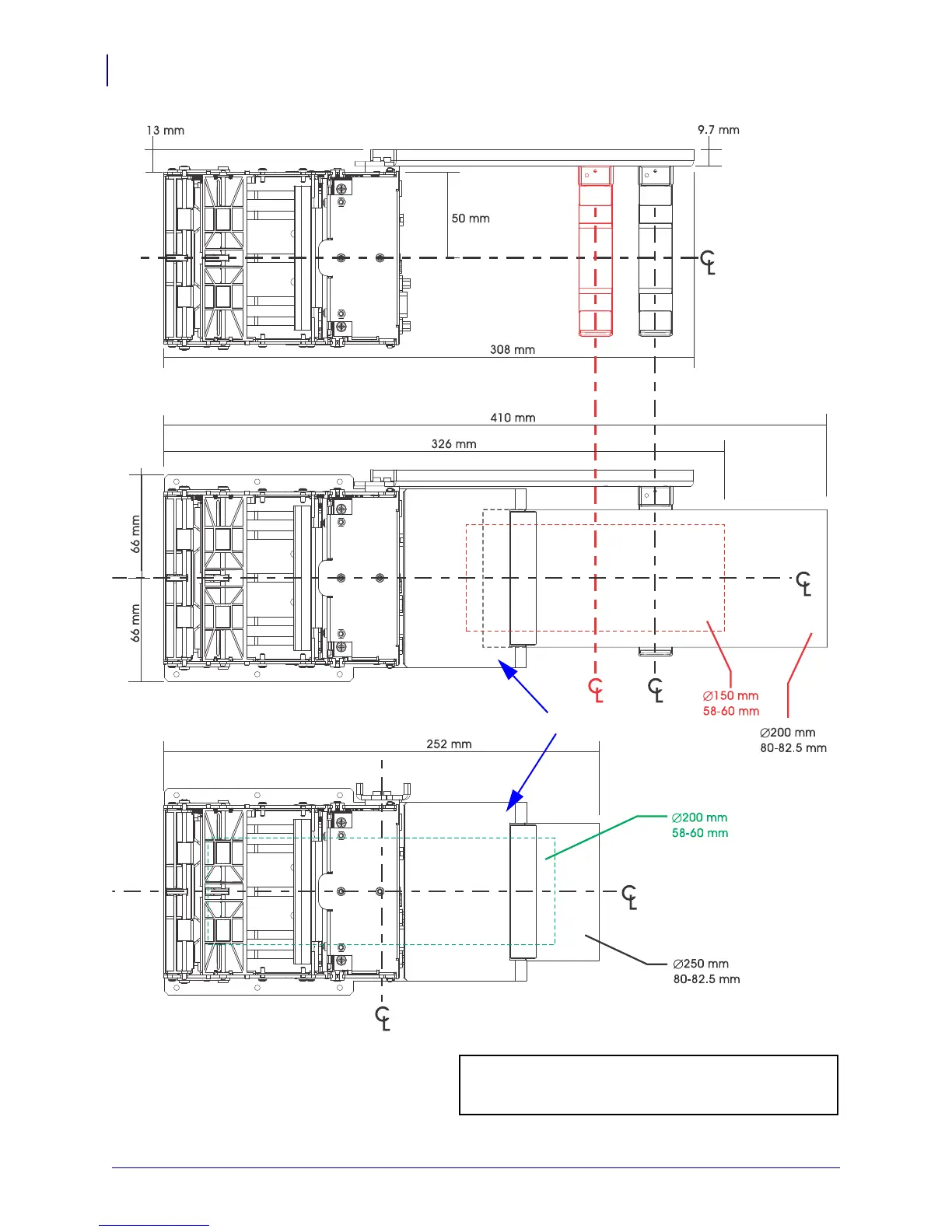

‘High’ Position (No Mounting Plate)
‘Low’ Position with Mounting Plate
‘Under’ Position with Mounting Plate
For illustration purposes:
— ‘High’ position - media is not shown
— ‘High’ position - both roll supports are shown
Mounting Plate
