Accessories
Large Media Roll Adapter – P1026858
10/26/2010 KR203 Hardware Integrator Guide P1028247-001 Rev. B
Attaching to the Printer

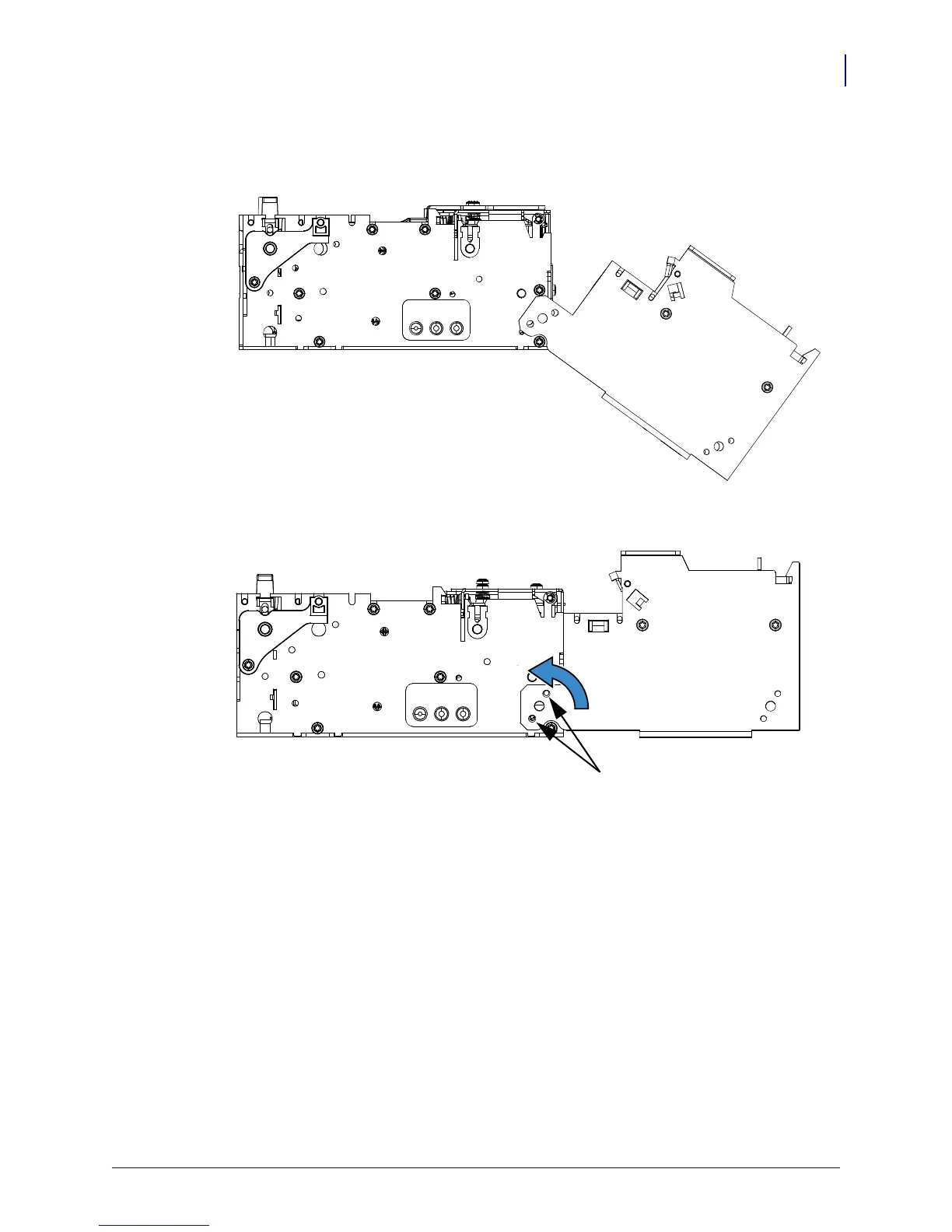

1. Place the adapter on the printer at an angle as shown.
2. Rotate the adapter upwards as shown and install the screws.
Install
screws on
both sides
