Printer Overview
Basic Printer Dimensions
The illustration below outlines the basic printer mounting dimensions to install the printer
in a kiosk. These basic printer dimensions do not illustrate the unique integration
requirements needed to use the printer with specific printer accessories, operator
servicing access, media mounting, power and cabling access, and printer media handling.

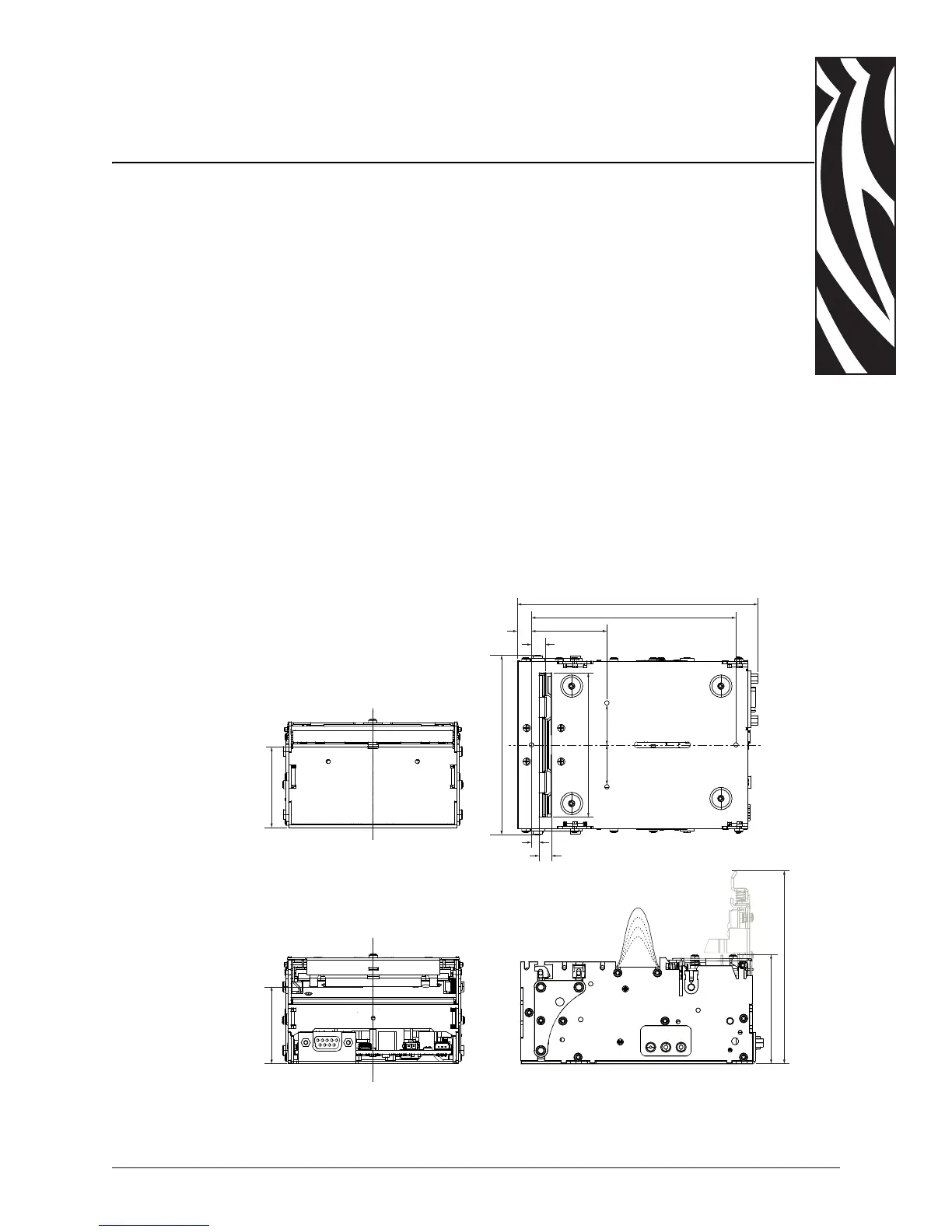

Figure 3-1 • Printer Dimensions
143
122
45
7.5
5
107
51
45.2
114
64.2
25
25
86
8.25
8
