Printer Overview
Basic Printer Mounting (printer only)
18
P1016701-001 Rev. B KR403 Hardware Integrator Guide 9/24/2010

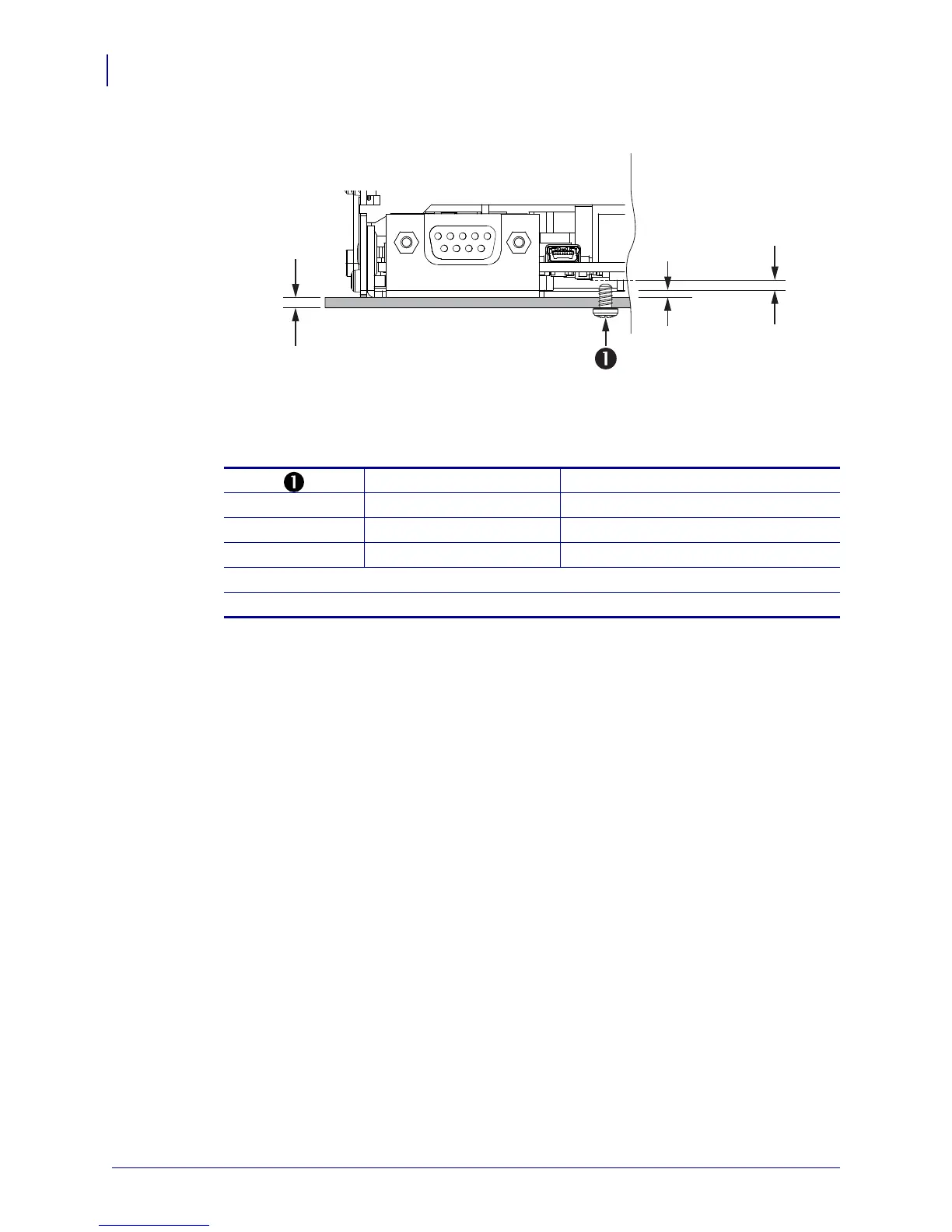

Figure 3-9 • Printer Mounting
Table 3-6 • M3 Metric Mounting Screw Length
M3 Screw
X 1.5mm minimum Printer mounting surface
Y 1.5mm Printer base plate thickness
Z 2mm maximum Penetration into circuit board area
X + Y = minimum length
X + Y + Z = maximum length
