Printer Overview
Design Your Own Mounting
9/24/2010 KR403 Hardware Integrator Guide P1016701-001 Rev. B
Design Your Own Mounting

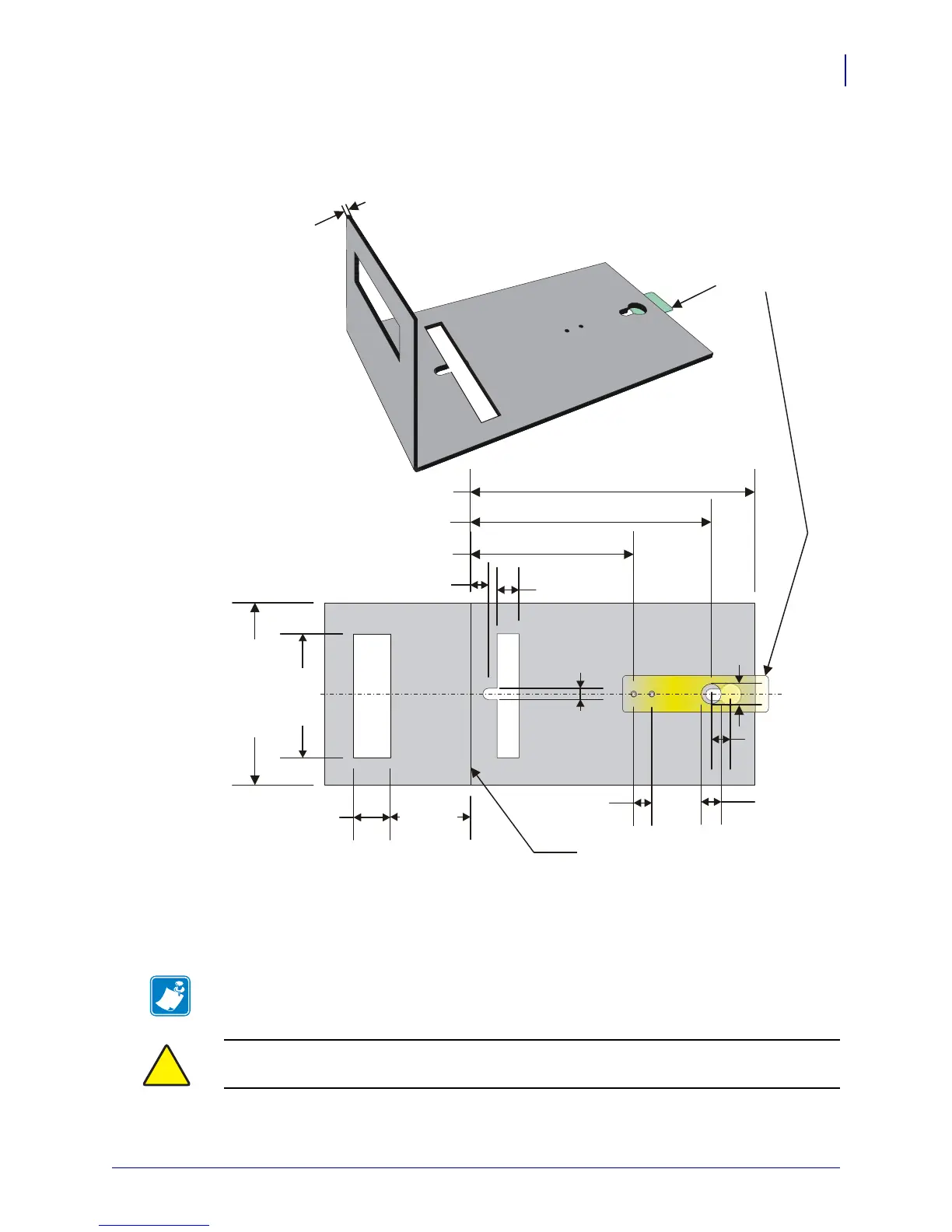

The illustration below gives an example of a printer-mounting shelf.
Additional space is required for paper loading and service access. Consider mounting the
printer on a movable platform so that the printer can be maintained outside the printer
enclosure.
Note • We recommend making the output slot 97 mm wide. This width should
accommodate all paper widths that the KR403 printers can handle.
Caution • NEVER use screws that go into the printer more than 4 mm! This will damage
the electronics inside.
Figure 3-10 • Printer Mounting
20 mm
Paper width
+ 10 mm
44 mm
10 mm

12 mm

6.5 mm
10 mm
90.8 mm
132 mm
156 mm
Leaf spring
01473-000

11 mm
10 mm
1.
5
m
m
Add material for corner radius
Min. 100 mm
Center
10 mm
