Accessories
Roll Support – P1014124
68
P1016701-001 Rev. B KR403 Hardware Integrator Guide 9/24/2010

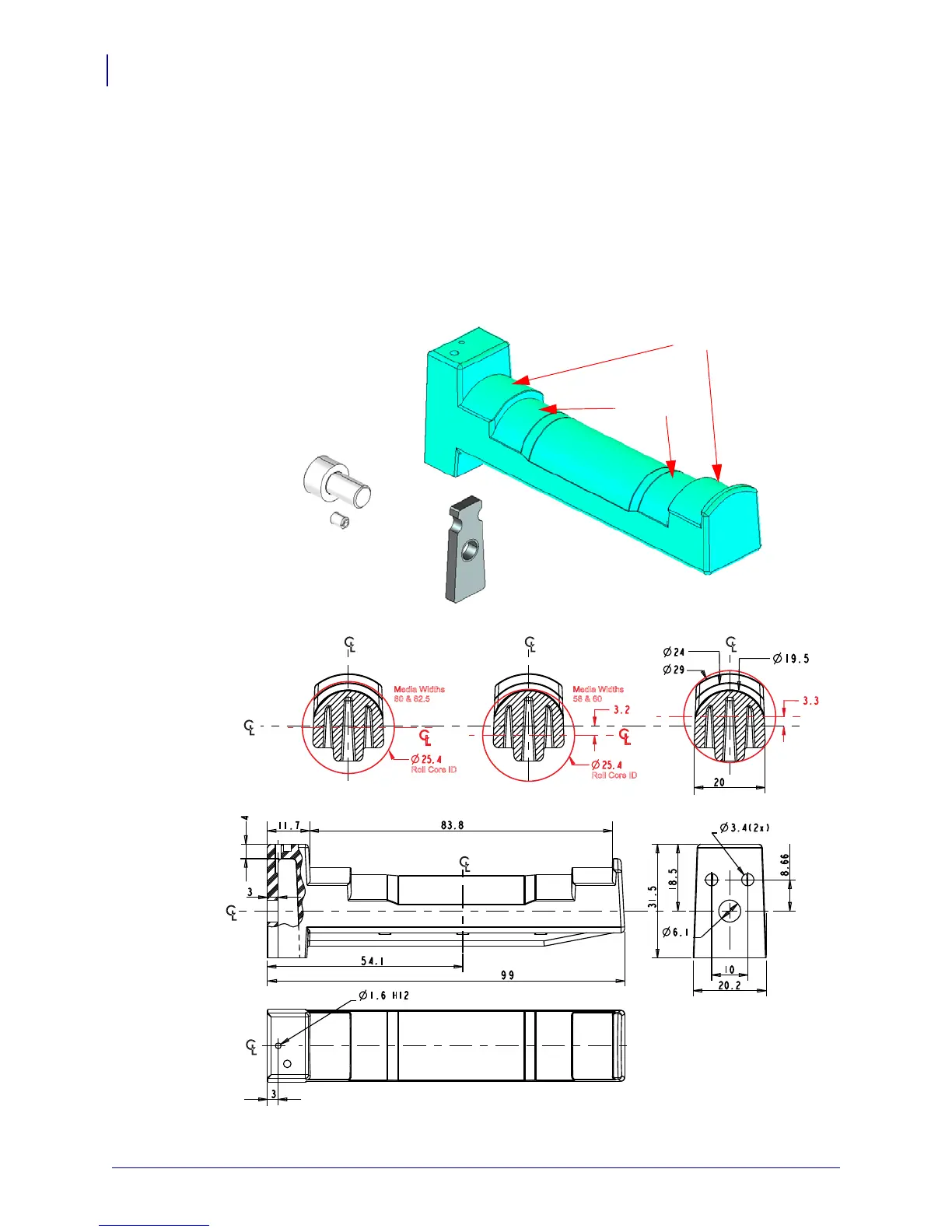

Roll Support – P1014124
The roll support bracket and mounting are designed (and tested) to mount to a sheet
metal wall 1.5 mm thick for media rolls up to 250 mm O.D. (Outer Diameter) with media
roll cores of 25.4 mm I.D. (Inner Diameter). The wider approved media roll widths (80 and
82.5 mm) align to the vertical centerline of the roll support bracket. The diagrams below
show the how the narrower approved media roll widths are offset lower by 3.2 mm. To
install a roll of media in the printer, the roll must clear the lip. The media roll needs to move
up nearly 4 mm above the centerline of the roll support bracket for loading.
C
C
3
Roll Core ID
20
Roll Core ID
Media Widths
58 & 60
Media Widths
80 & 82.5
(used for Media Low Sensor mounting)
Wide Media
(80 or 82.5 mm)
Narrow Media
(58 or 60 mm)
All Media
Wide
Narrow
