Zebra KR403 - Page 79

73
Accessories
Universal Roll Holder – P1014125
9/24/2010 KR403 Hardware Integrator Guide P1016701-001 Rev. B

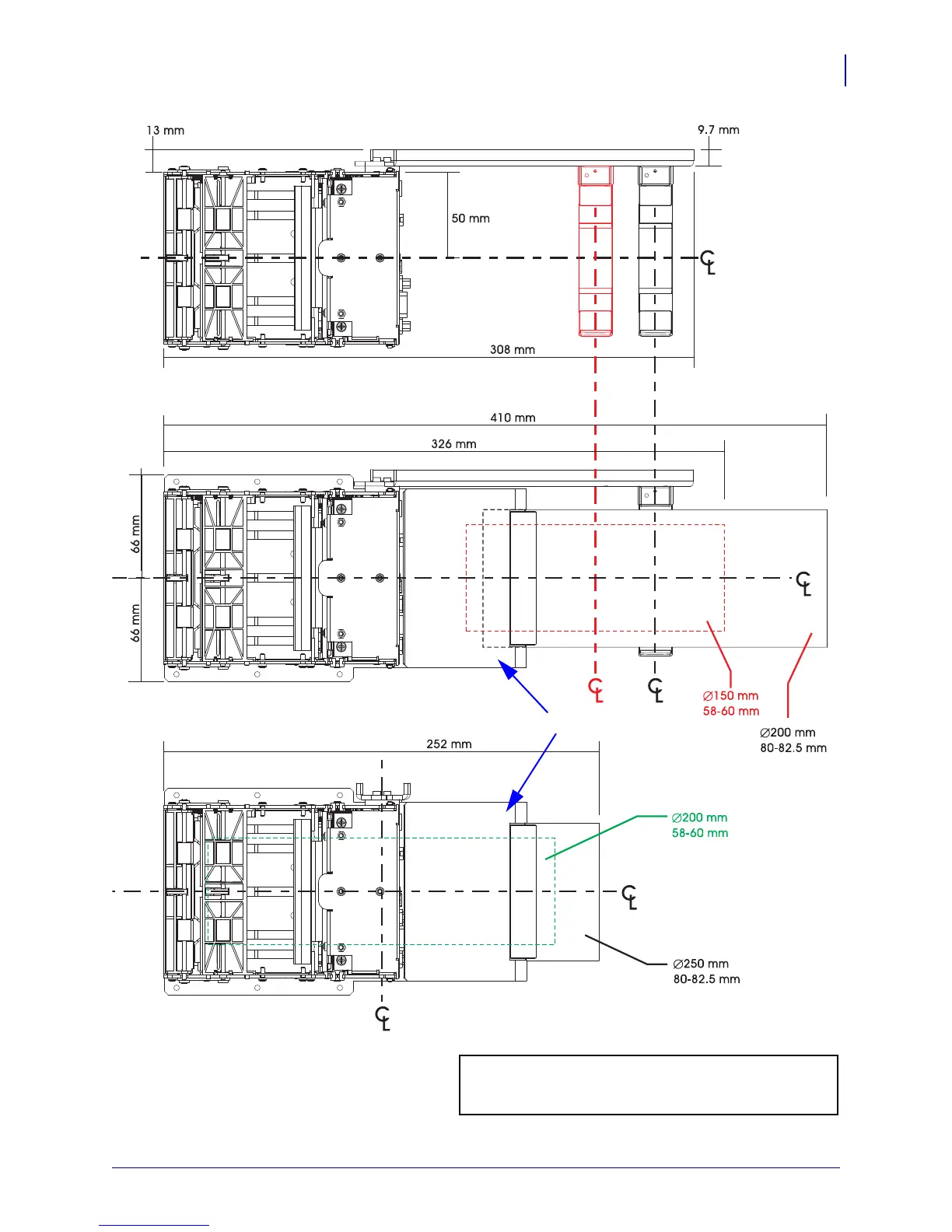

‘High’ Position (No Mounting Plate)
‘Low’ Position with Mounting Plate
‘Under’ Position with Mounting Plate
For illustration purposes:
— ‘High’ position - media is not shown
— ‘High’ position - both roll supports are shown
Mounting Plate
