Technical Specifications
Bi-Directional Communications Interfaces
980470-001 Rev. A P430i User’s Manual 45

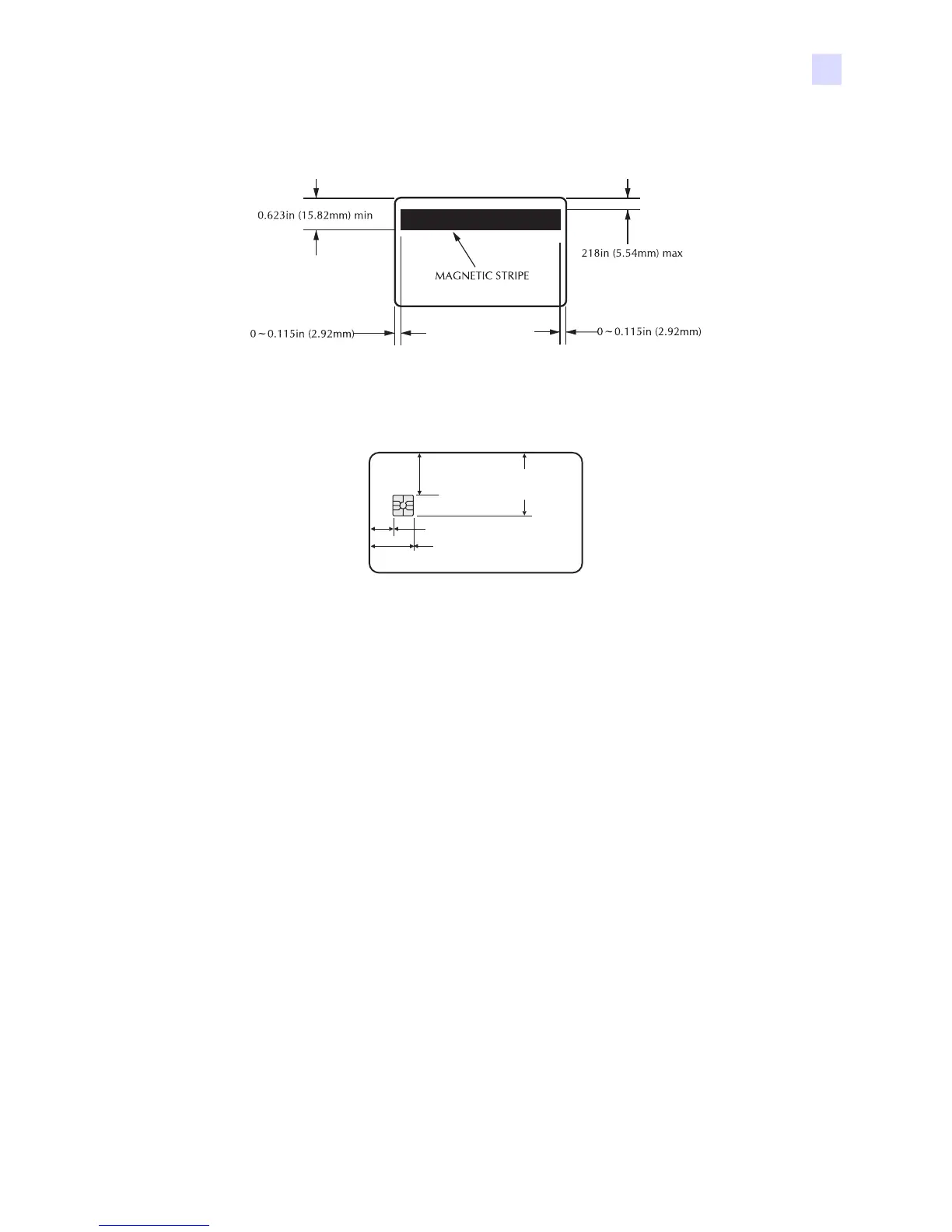

ISO Standard 7811 Dimensions for Magnetic Stripe Card
Contact Location for Smart Card ISO Standard 7816
Bi-Directional Communications Interfaces
•USB
• Built-in Ethernet (optional)
Mechanical Specifications
• Width: 26 in (661 mm)
• Depth: 10 in (254 mm)
• Height: 11 in (279 mm); 12 in (305 mm) with extended feeder
• Weight: 20 lbs (9.1 kg)
Electrical
• 100 – 230 Volts AC ± 10% (99 - 254 V), 60 ~ 50 Hz ± 3Hz (47 - 63 Hz)
• 110 V: 1.40A; 230 V: 0.8A
• FCC Class A, CE, UL, and CUL approved
0.403 in (10.25 mm)
0.782 in (19.87 mm)
0.757 in
(19.23 mm)
1.124 in
(28.55 mm)
ISO 7816 Cards
