pg. 5
Wireless Congiguration
QSG for 802.11n & Bluetooth
Radios for Link-OS Mobile Printers
P1048352-001 Rev. C
continued

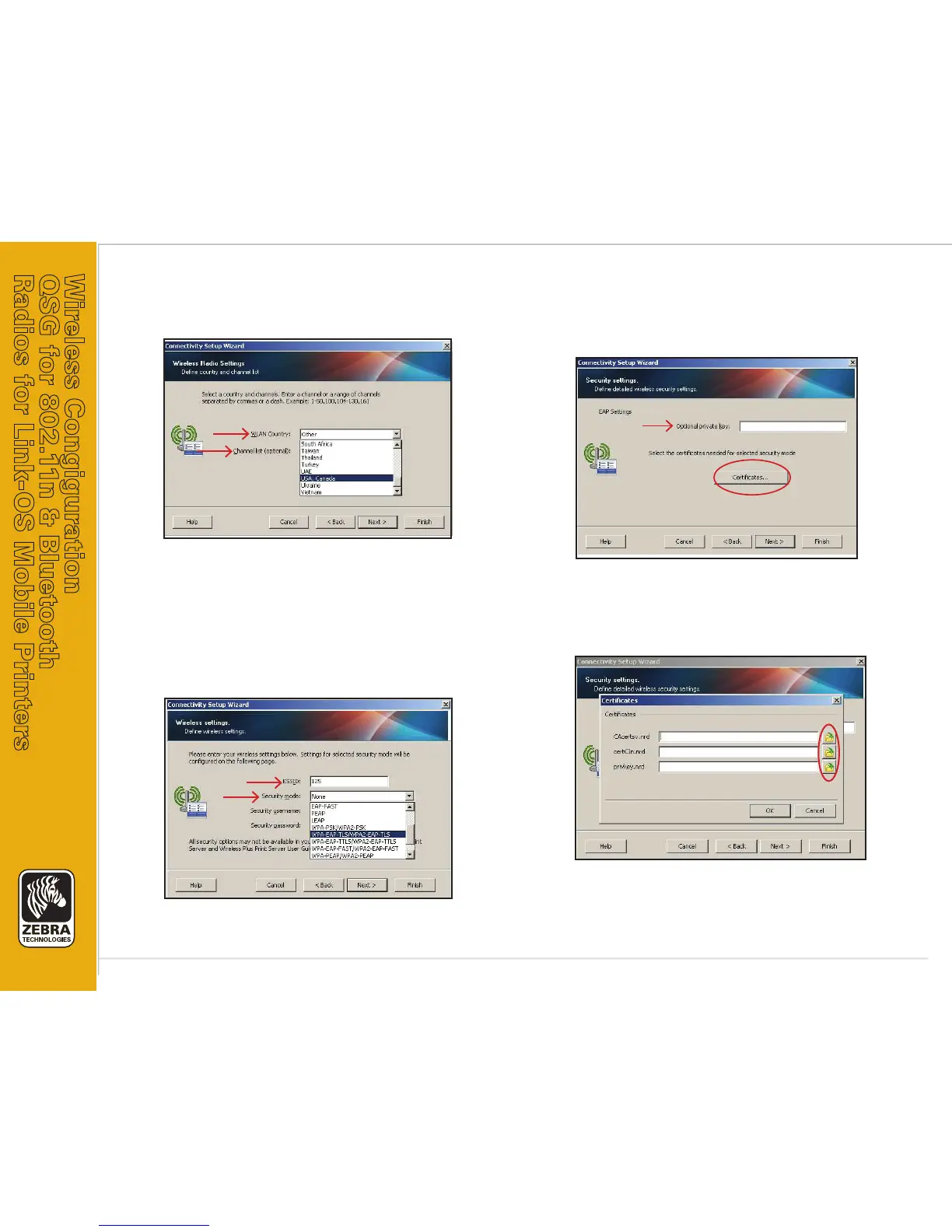

• Select the WLAN country in which your device is op-
er ating from the drop down menu. You also have
the option to manually enter a channel or range of
channels in the Channel List box (show n below.)
Enter the ESSID number in the appropriate field on the Wire-
less Settings window. (If ESSID is unknown, consult your
local network administrator.)
• Enter Security Mode from the choices in the dropdown
menu (e.g. WPA-EAP-TLS/WPA2-EAP-TLS). Other avail-
able securities include: WEP 40-bit, WEP 128-bit, EAP-TLS,
EAP-TTLS, EAP-FAST, PEAP, LEAP, WPA-PSK/WPA2-PSK,
WPA-EAP TTLS/WPA2-EAP-TTLS, WPA-EAP-FAST/WPA2-
EAP-FAST.
• Enter Optional Private Key Password (if applicable) where shown.
• Click on Certi cates button (circled) to bring up the Certificates
window.
• Click on the folder icons (circled) next to each entry field to
upload appropriate certificates, e.g. root, client, private
key, etc.
• Click OK to return to the Security Settings window and click
Next to get to the Advanced Wireless Settings window.
• If your private key is encrypted, you must enter a passphrase
to decrypt it as shown below. If your private key is not en-
crypted, leave this field blank.
• Click Next button.
