Zebra QLn320 Quick Start Guide

4
Introduction
Battery Install &
Charging
Media Loading
Connect Printer/
Printer Controls
Cleaning and Trouble
-
shooting
Accessories and
Contact Info

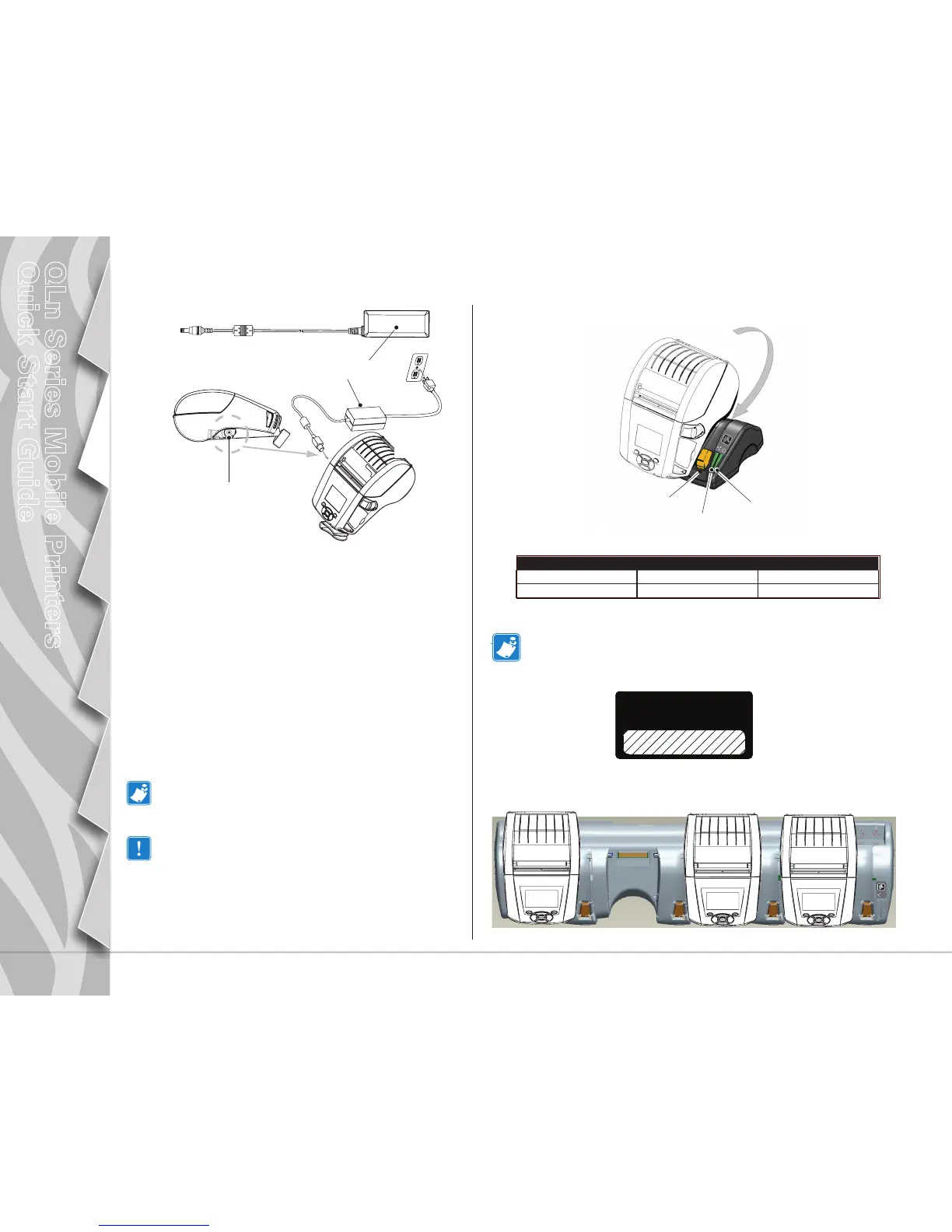

QLn Series Mobile Printers Quick Start Guide
Ethernet Cradle (Single Bay & Four Bay)
Single Bay (QLn-EC)
Power Status
Indicator
Four Bay (QLn-EC4)
LED Function LED Status Indication
Power Solid Green Power On
Ethernet Blinking Green Ethernet Activity
Ethernet Status
Indicator
AC Power Adapter (included in kit p/n P1031365-024)
DC Input Jack
Qln320 AC
Adapter
AC Power Cord
(varies with
location)
• Open the protective cover on the QLn Series printer
to expose the DC input charger jack.
• Connect the appropriate AC power cord for your geography
to the adapter and then plug the power cord into an AC re-
ceptacle.
• Plug the barrel plug from the AC adapter into the
charger jack on the printer.
• The printer will power up and begin charging. The printer
can be left on or turned off at this point. Charging will con-
tinue in either state, the status of which will be monitored
by the LED charge indicator on the front of the printer.
Batteries are shipped uncharged. Remove protective shrink-
wrap and labels from new battery packs and allow them to
charge completely prior to initial use.
While it’s possible to charge the battery when using the
printer, charge times will increase under this condition.
Release Button
NOTE: Remove the “Docking Cradle Access” label (shown below) on the bottom
of the printer before docking the printer in the cradle.
DOCKING CRADLE ACCESS
