QLn Series User Guide
Home Menu Screen (QLn420 and QLn Healthcare Printers)
The QLn420 and QLn Healthcare printers share the same
control panel. The printer’s control panel includes a display
where the user can view the printer’s status or change its op-
erating parameters. After the printer completes the power-up
sequence, it moves to the Idle Display screen (Figure 21). This
screen includes the printer’s current status, information such
as firmware version and IP address, and a Home menu short-
cut.
The Home Menu for the printer uses a different set of icons
than the standard QLn320 and QLn220, uses larger fonts for
enhanced readability, and also provides support for multiple
languages. The Home Menu screen displays graphical pa-
rameter options including Settings, Tools, Network, Battery,
Language, Sensors, Ports, and Bluetooth (as shown in Figure
22). These options allow the user to view the printer’s status
or change its operating parameters.

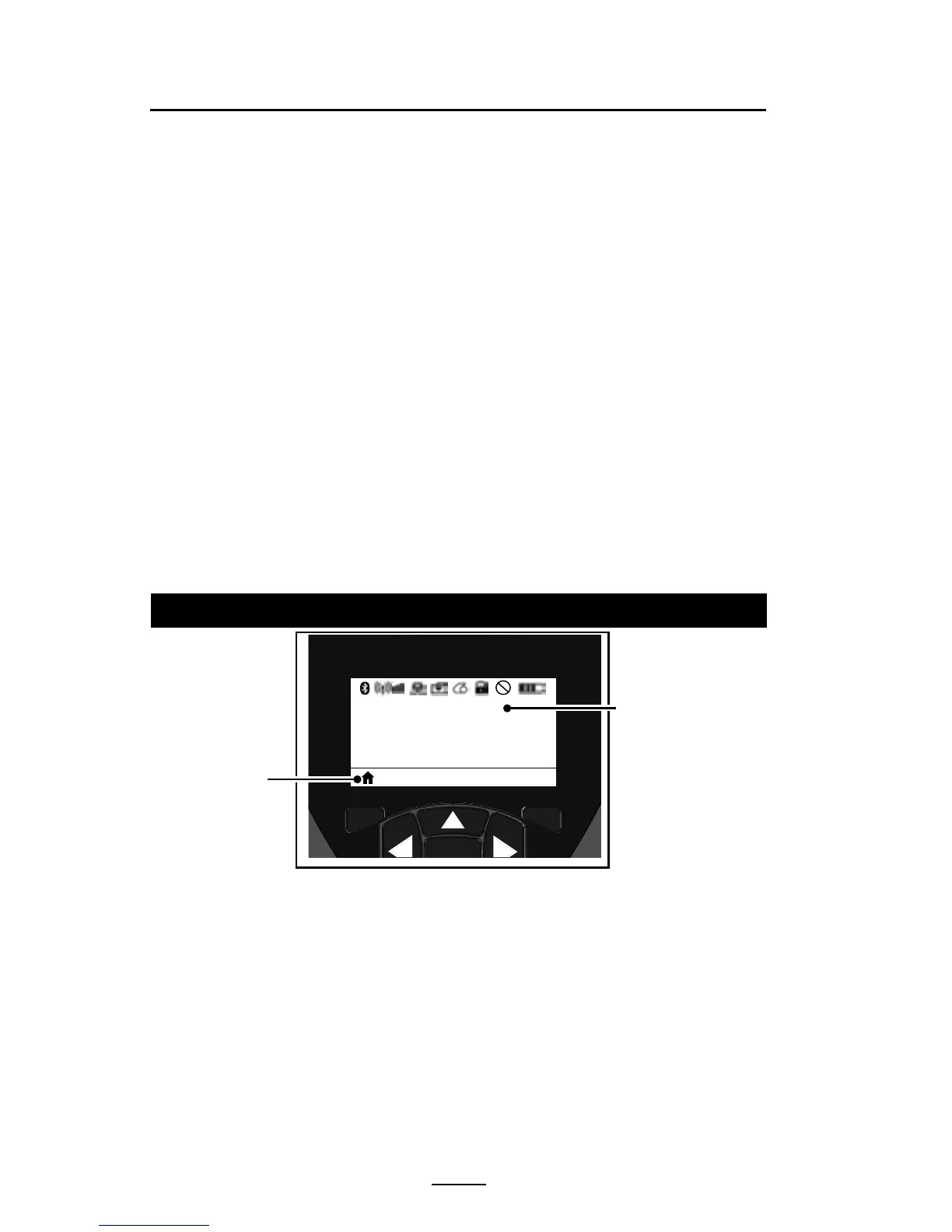

Figure 21: Idle Display Screen (QLn420 and QLn Healthcare)
PRINTER READY
V68.18.3z
Current status
Home icon
The printer’s operating parameters are sorted into eight (8)
user menus, which you can access through the printer’s Home
menu (Figure 22). Click on the Home icon located on the Idle
Display screen to proceed to the Home Menu.
The user can scroll between icons using the four-way arrow
buttons. When an icon is highlighted, its text description will
be displayed in the middle of the navigation bar, and can be
selected by pressing the “OK” button. This will take the user to
the screen with status information specific to that option.
