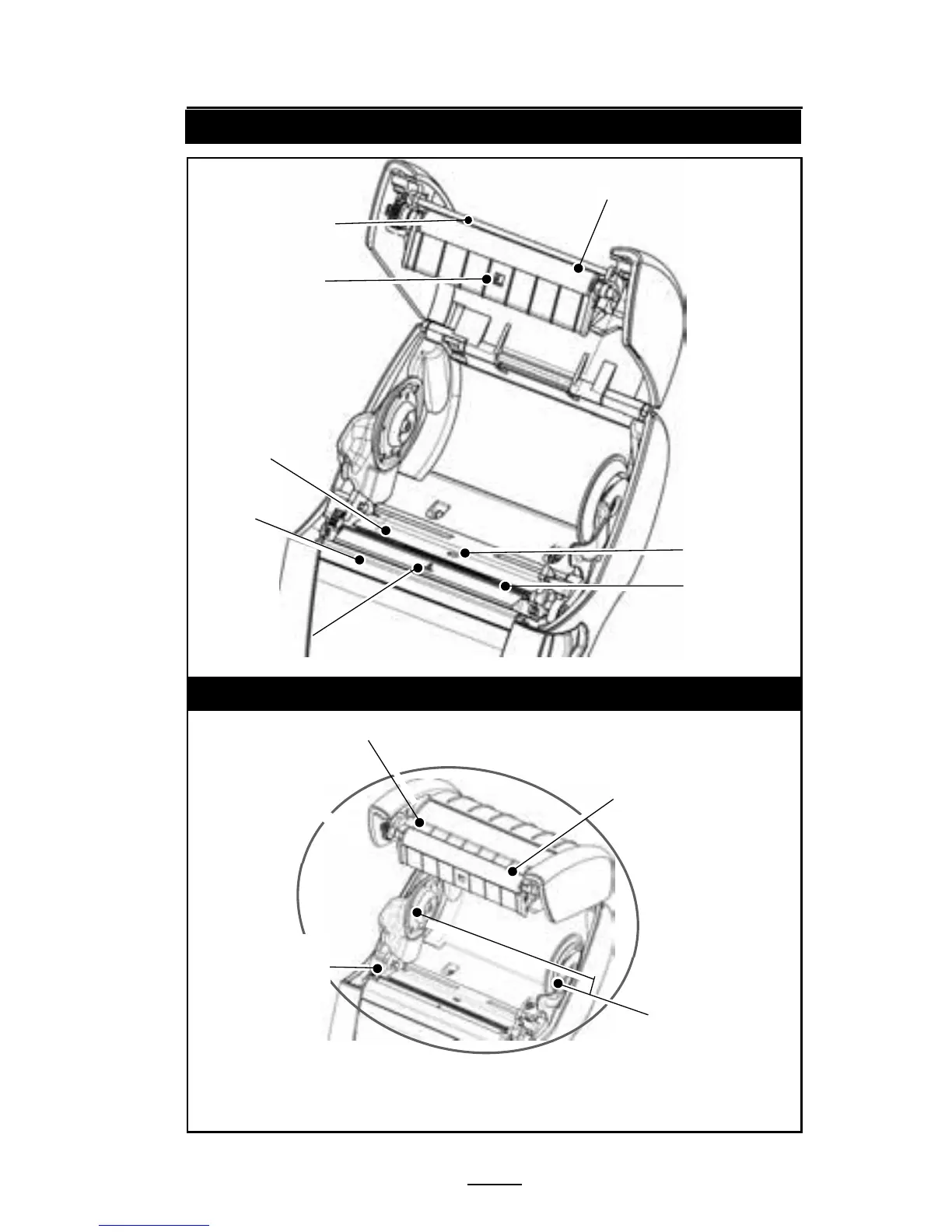

Figure 38: Cleaning the QLn Series Printers (QLn320 Shown)
Printhead
Elements
Peeler Bar
Platen surface
Avoid using alcohol
on linerless platen
surface.
Tear Bar
Label
Presence
Sensor
Bar Sensor
Gap
Sensor
Media Support
Disks, Inner
surfaces on
both sides.
Linerless units only.
Platen surface
Peeler
Bar
Figure 39: Cleaning the Linerless QLn Series Printers
Bearing Points
Linerless Platens only
Scraper
