QLn Series Mobile Printers Quick Start Guide
OK
OK
PRINTER READY
V68.18.1z
Feed Button
Press to advance a blank label or a software deter-
mined length of journal media.
Power Button
Press to turn unit on. There will be a 10
second boot up time.
Press again to turn unit o
LED Charge Indicator
Solid Yellow: Charging
Solid Green: Fully charged
O: No DC Power Applied
O: With DC Power Applied: Charge Fault

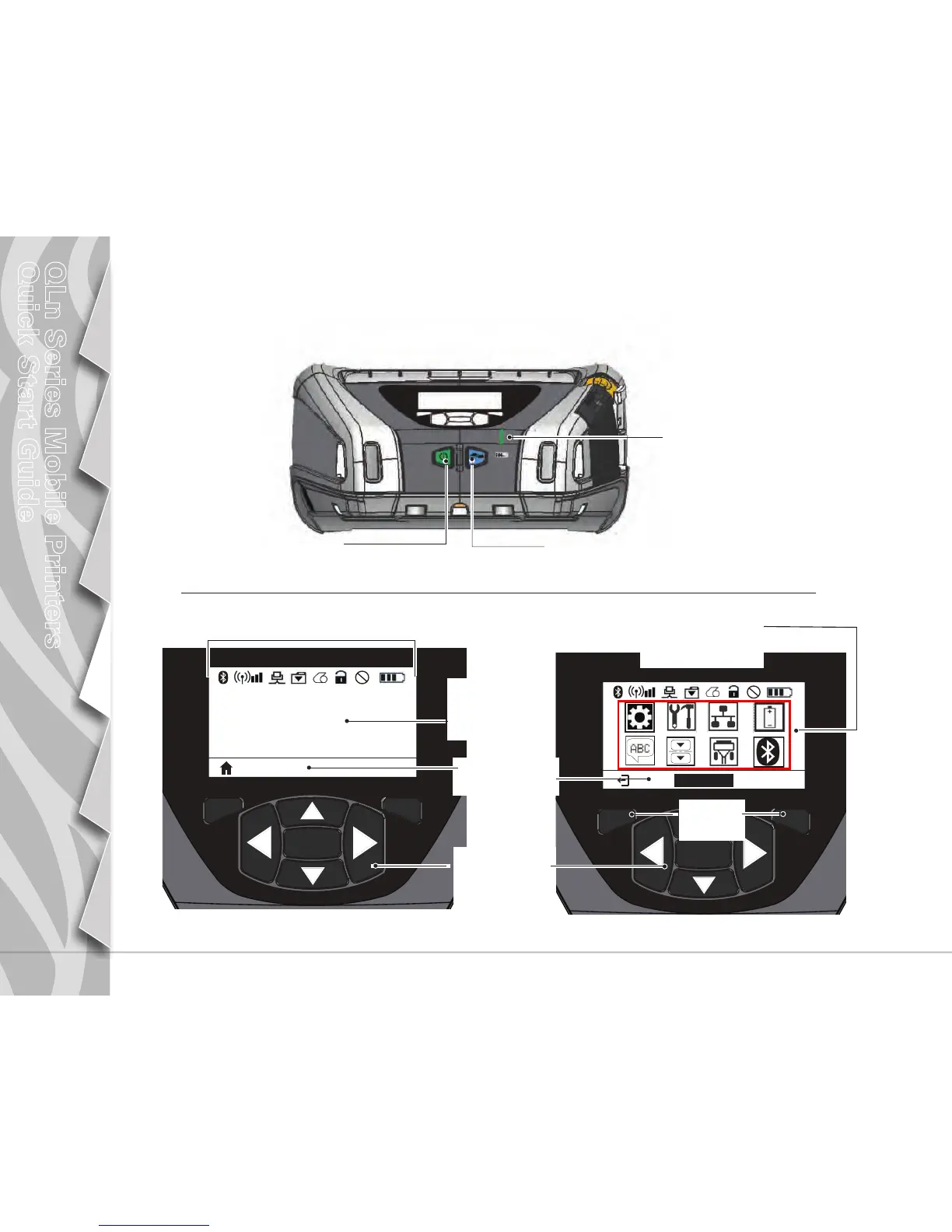

Printer Controls (QLn420)
OK
OK
SETTINGS
Printer Status Bar
Indicates the status of several
printer functions.**
Status Screen
Default screen the
printer will display
when the user is not
navigating the main
menu screen.
Four Way Navigation
Buttons
Scroll through menu
choices on Status Screen
Press “OK” to enter.
Navigation Bar
Displays user-selectable
options.
Soft Keys
Press to select a
function on the
Navigation Bar.
Main Menu Screen
Displays graphical options in-
cluding Settings, Tools, Network,
Battery, Languages, Sensors,
Ports and Bluetooth.
** Not every icon will be dis-
played on the Status Bar at one
time, only those applicable to the
printer’s conguration.
