Zebra S4M Quick Reference Guide

3
Printer Components
9/21/05 S4M Quick Reference Guide 13292L-001 Rev. A
Printer Components
Figure 3 shows the components inside the media compartment of your printer. Depending on
installed options, your printer may look slightly different.

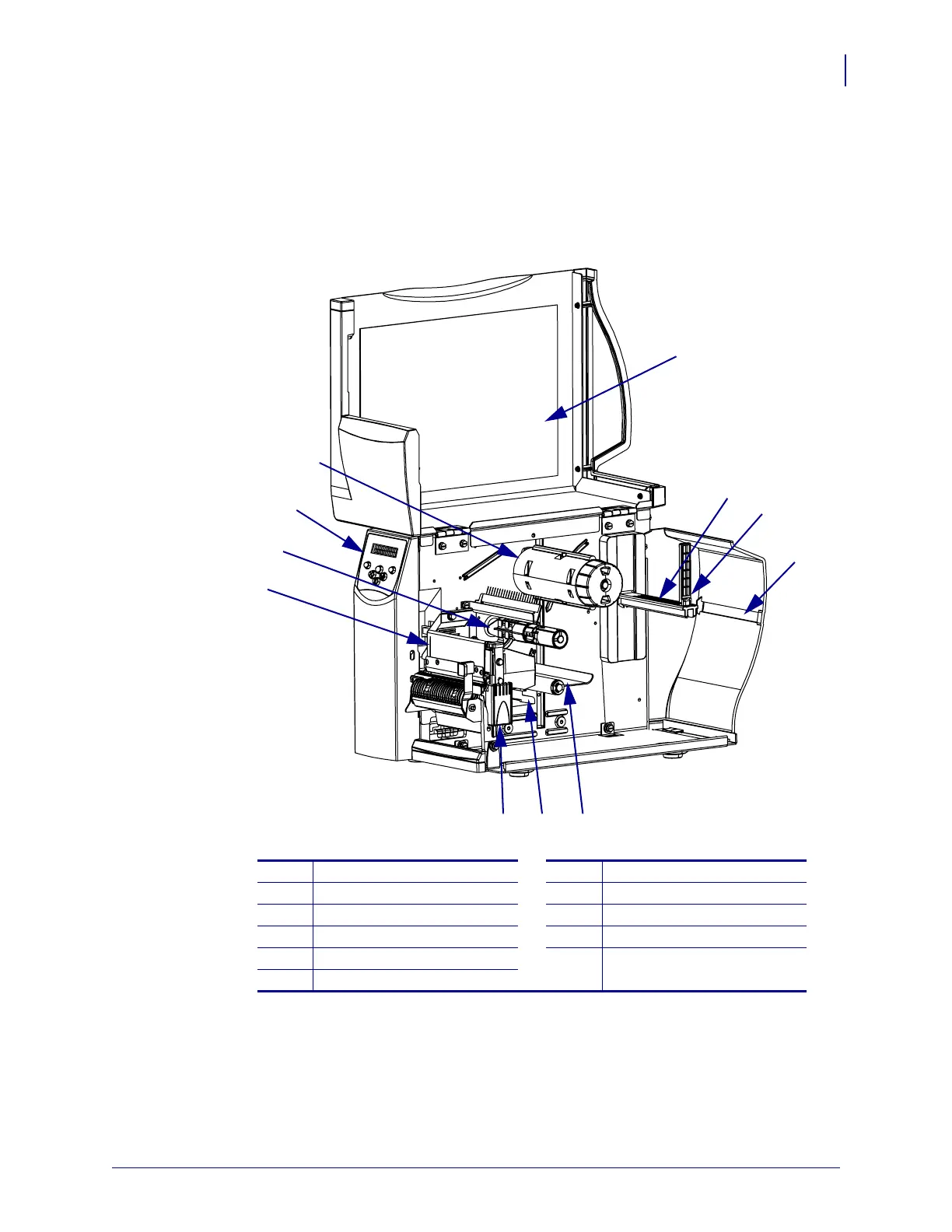

Figure 3 • S4M Printer Components
1
Printhead assembly
7
Media supply guide
2
Ribbon supply spindle*
8
Fanfold media slot
3
Control panel
9
Dancer assembly
4
Ribbon take-up spindle*
10
Media guide
5
Media door
11
Printhead release latch
6
Media supply hanger
* Present only on printers that have the Thermal Transfer option installed.
911
6
7
4
2
10
1
8
3
5

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
