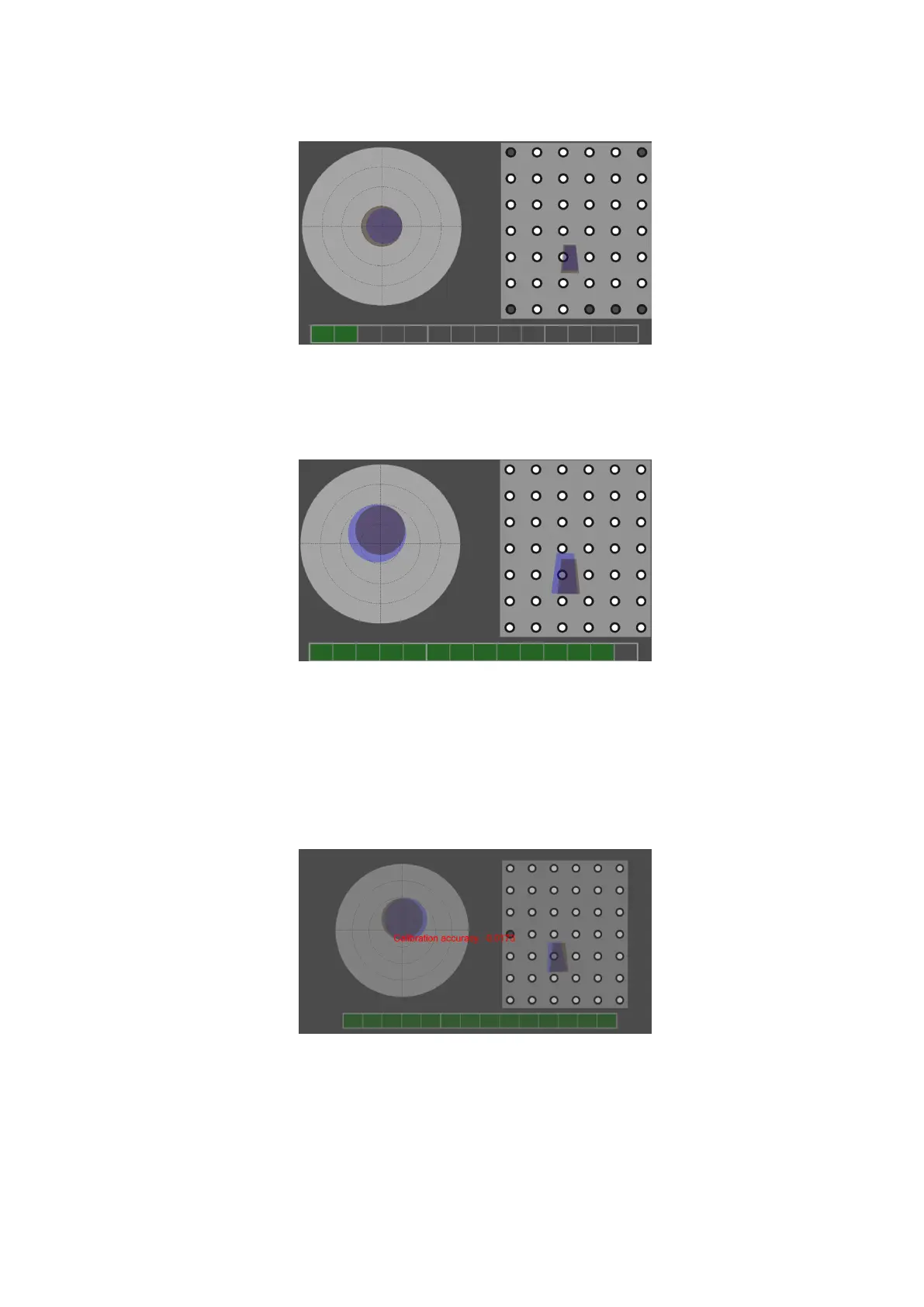

Fig. 7: Calibration Position 2
First, record various vertical positions on the calibration object. Then, dif‐
ference 45° scanning positions are necessary. The two indicators show the
correct position of the sensor.
Fig. 8: Other calibration positions
Follow the remaining instructions on the software until the procedure is
complete.
7.3 Calibration Result
At the end of the calibration procedure, the software displays the calibra‐
tion result.
Fig. 9: Calibration result
Calibrate the Sensor
