COMMISSIONING
Finally carry out a general functional test and perform the basic and car specific settings (AC, OPS etc.).
Also ensure that no fault warnings appear on the vehicle side.
12. Press the trim frame back on to make the
installation complete.
● Make sure that all connectors at the rear of the ZENEC system have sufficient room and are not bent.
● Connectors without a retaining mechanism must be additionally secured with insulating tape.

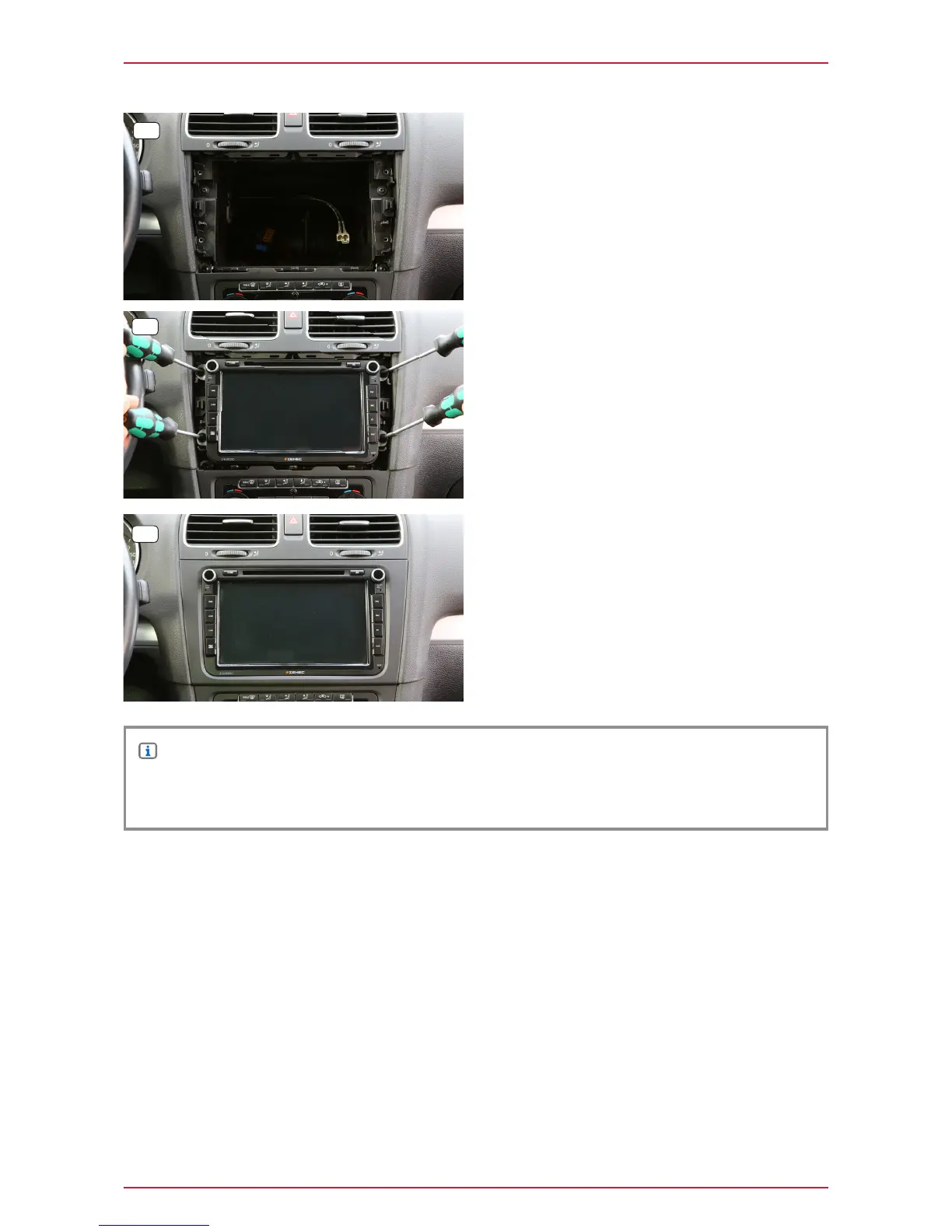

11. Neatly arrange the wires to the side, making
room for the ZENEC system. Carefully slide it
into the radio slot and fix it in place, using the
four original Torx screws.
10. Connect all the cables to the ZENEC system
(No. 1): those previously run in the radio slot,
and the original antenna cables.
