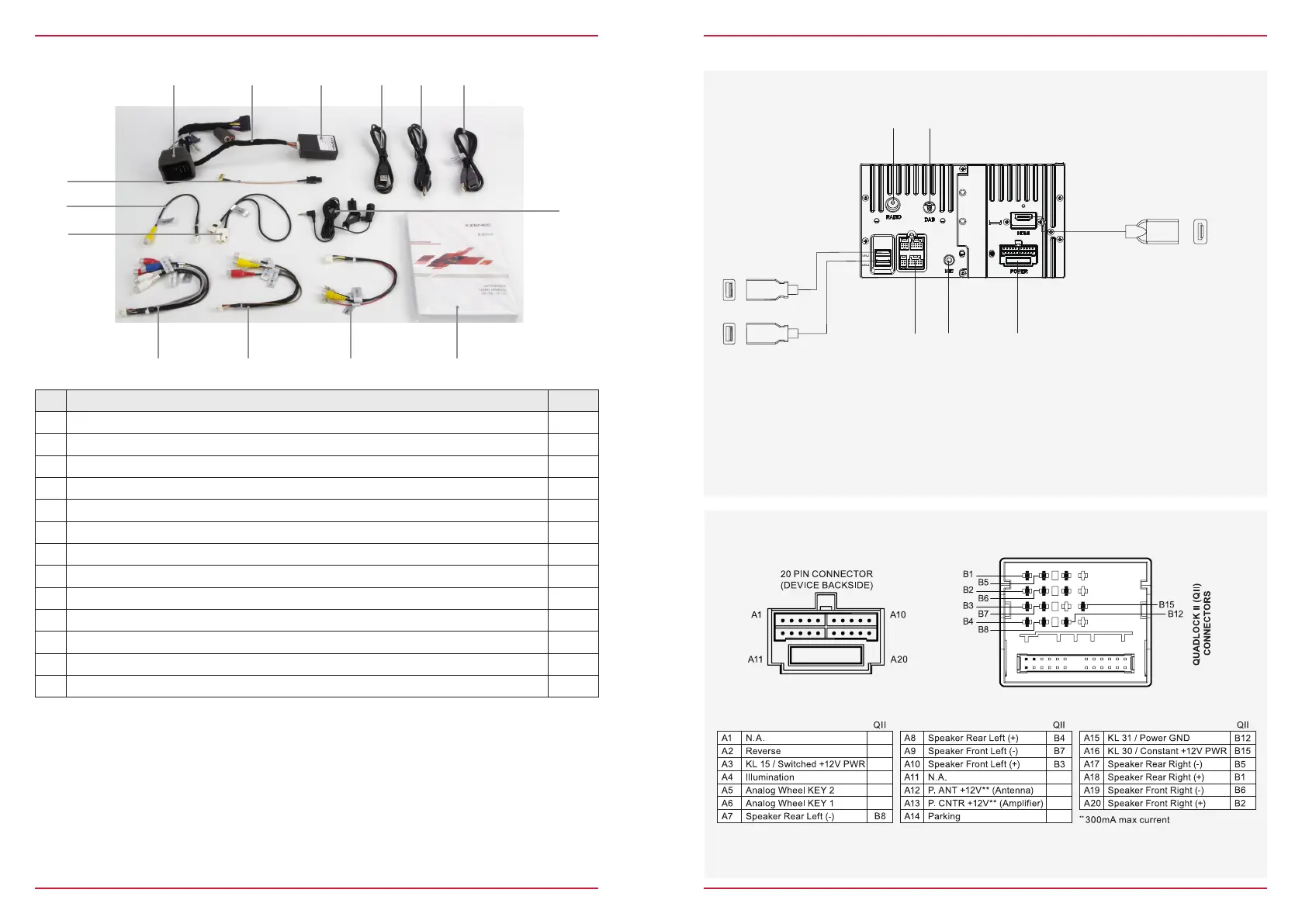

ZENEC Z-E2055 - Package Contents and Connections; Overview of Included Accessories; Connection Diagram Overview

72 Rev.C 73 Rev.C
OVERVIEW INCLUDED ACCESSORIES
CONNECTION DIAGRAM Z-E2055
*A12/A15 and B4/B7 Pin assignment of switched/constant power is vehicle dependent **300mA max current
Z-E2055
DAB
POWER
HDMI
USB 1
USB 2
UKW/FM
MICCONNECTOR
USB1:
• Apple CarPlay, Apple MFI and Google Android Auto
• USB Media Playback, Software Updates
• Power charging ~1000mA
USB2:
• USB Media Playback
• Power charging ~1000mA
A B
No. Article Qty
1 Main power Main harness Quadlock II for VW 1
2 CAN BUS connection cable for ZENEC interface 1
3 ZENEC CAN BUS Interface 1
4 USB extension cable 1m 2
5 USB special data extension cable 1m for CarPlay + Android Auto at USB-1 1
6
DAB SMB to Fakra A converter cable 1
7
4 PIN connection cable Cinch-Video Out 1
8
FM antenna interface, single to twin Fakra converter cable for VW 1
9
Bluetooth microphone with mounting accessories 1
10
10 PIN connection cable Cinch-Line-Out (RCA 4.2CH Line-Out) 1
11
6 PIN connection cable Cinch A/V IN 1
12
12 PIN connection cable Cinch Camera-in 1
13
Main device operating instructions booklet 1

   



   

