ZENEC Z-E3766 - Connection Diagram and Wiring; Connector Pinout Details; Wiring Harness Configuration

Technical modifications excepted. No liability granted for printing errors. © Copyright 2020  RevB / copy deadline: Q1-2020  English
ZENEC  Bohrturmweg 1  CH-5330 Bad Zurzach  Schweiz/Switzerland  Mail: support@zenec.com  www.zenec.com
B9 Loudspeaker rear right (-)
B10Loudspeaker rear right (+)
B11Loudspeaker front right (-)
B12Loudspeaker front right (+)
B13Loudspeaker front left (-)
B14Loudspeaker front left (+)
B15Loudspeaker rear left (-)
B16Loudspeaker rear left (+)
B1 N.A.
B2 N.A.
B3
KL 30 /
Permanent
+12V PWR
B4 N.A.
B5
Illumination
B6
Switched
+12V antenna PWR
B7 KL 31 / Power GND
B8
KL 15 /
Switched
+12V PWR
B2
B1
B4
B3
B6
B5
B8
B7
B9
B10
B11
B12
B13
B14
B15
B16
A9 Loudspeaker rear right (+)
A10Loudspeaker front right (+)
A11Loudspeaker right (-)
A12Loudspeaker front right (-)
A13Loudspeaker rear left (+)
A14Loudspeaker front left (+)
A15Loudspeaker rear left (-)
A16Loudspeaker front left (-)
A1 KL 31 / Power GND
A2 KL 30 / Permanent +12V PWR
A3 KL 15 / Switched +12V PWR
A4 Illumination
A5 Switched +12V amp PWR*
A6 Parking
A7 Switched +12V antenna PWR
A8 Reverse gear
*300mA max.
A10 A12A14 A16A2 A4 A6 A8
A9 A11A13 A15A1 A3 A5 A7

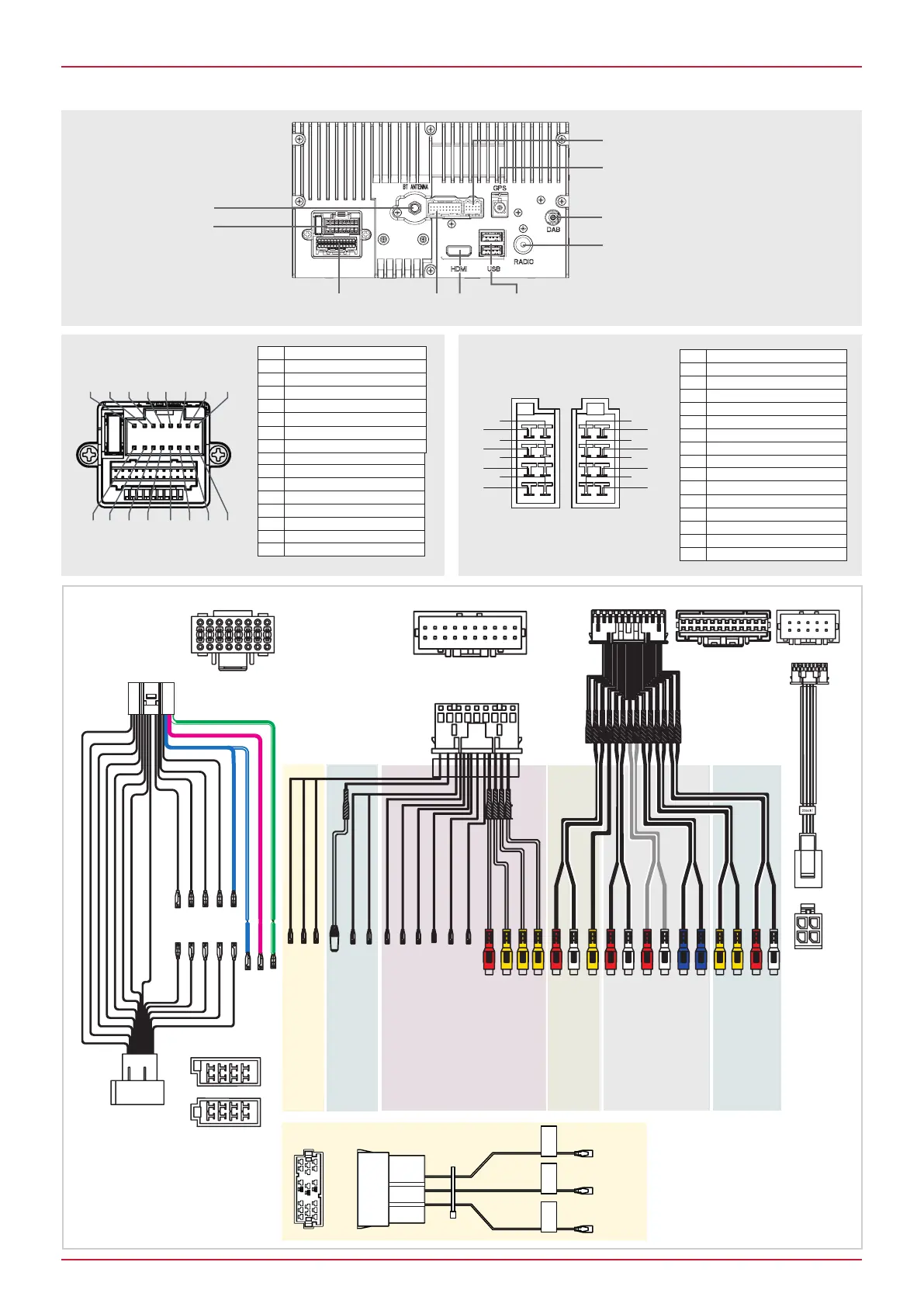

CONNECTION DIAGRAM
(see note on DAB antenna page 2)
FM
DAB
GPS
D
Bluetooth Antenna
A
CEHDMI USB 1/2
ECCA
A
B
B
Camera
eCall Mute
IR In
ext. Mic
GND
CAM Audio In
CAM 1 CVBS In
Line In R
Line In L
Video In
Front Out R
Front Out L
Rear Out R
Rear Out L
Subwoofer Out Subwoofer Out
Video Out 1 Video Out 2
Line Out R
Line Out L
P. CNTR
Parking
Reverse
A/V In Line Out
M-Zone
CAM 2 CVBS In CAM 3 CVBS In CAM 3 Power 300mA
GND
CAM 2 Power 300mA
GND
CAM 1 Power 300mA
Wheel Key 1 Wheel Key 2
Wheel Key GND
Analog SWC
Analog SWC
Connector
D
Input
(reserved
for
Schaudt)
Key1 Key2 GND
No 13 / Nr. 13
