PAGE 6

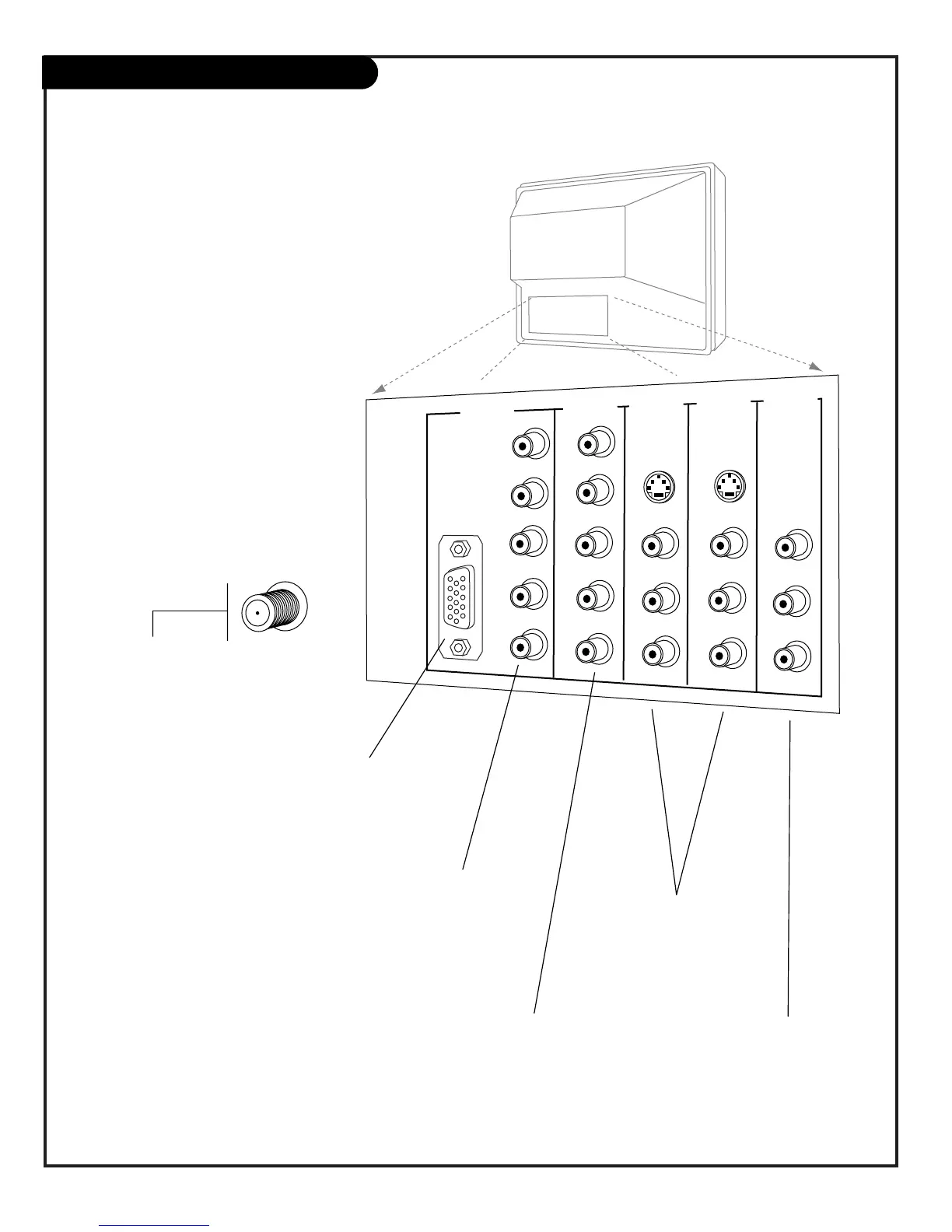

“Source” Connection Panel Overview
To hook up source equipment,see below and also
refer to the Table of Contents on page 5; shows
pages to go to for equipment hookup options. Also,
see the front connections panel source’s hookup
options on page 16.
After you have finished hooking up your source
equipment, go to page 18 and use
EZ Program to search for and find
all the available channels in
your area.
TV Back
Pr
Pb
Y
R
L
P
r
Pb
Y
R
L
R
L
R
L
R
L
RGB
VIDEO 2
IN
VIDEO 1
IN
DVD IN
HD IN
MONITOR
OUTPUT
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
MONO
MONO
VIDEO
VIDEO
VIDEO
S-VIDEO 1
S-VIDEO 2
ANTENNA
CABLE
VIDEO 1 IN VIDEO 2 IN
Connect your Audio/Video or
S-Video equipment to these
jacks.
See pages 9, 10, 11.
ANTENNA/CABLE
Use to hookup your
antenna or cable system.
See pages 7, 8, 9, 10, 11.
VIDEO / R - L AUDIO OUT
Use these output jacks to connect
external audio/video equipment.
See page 15.
HD IN
Connect progressive scan or high-definition
component video equipment here.
Progressive Scan DVD, 480p
EDTV Set top Box, 480p
HDTV Set top Box, 1080i
HD-RGB INPUT
Connect HD-RGB here.
RGB Format: EDTV Set top Box 640 x 480p
RGB Format: HDTV Set top Box 1920 x 1080i
DVD IN
Connect a standard component
video equipment or DVD player here.
DVD Player, 480i
SDTV Set top Box, 480i
