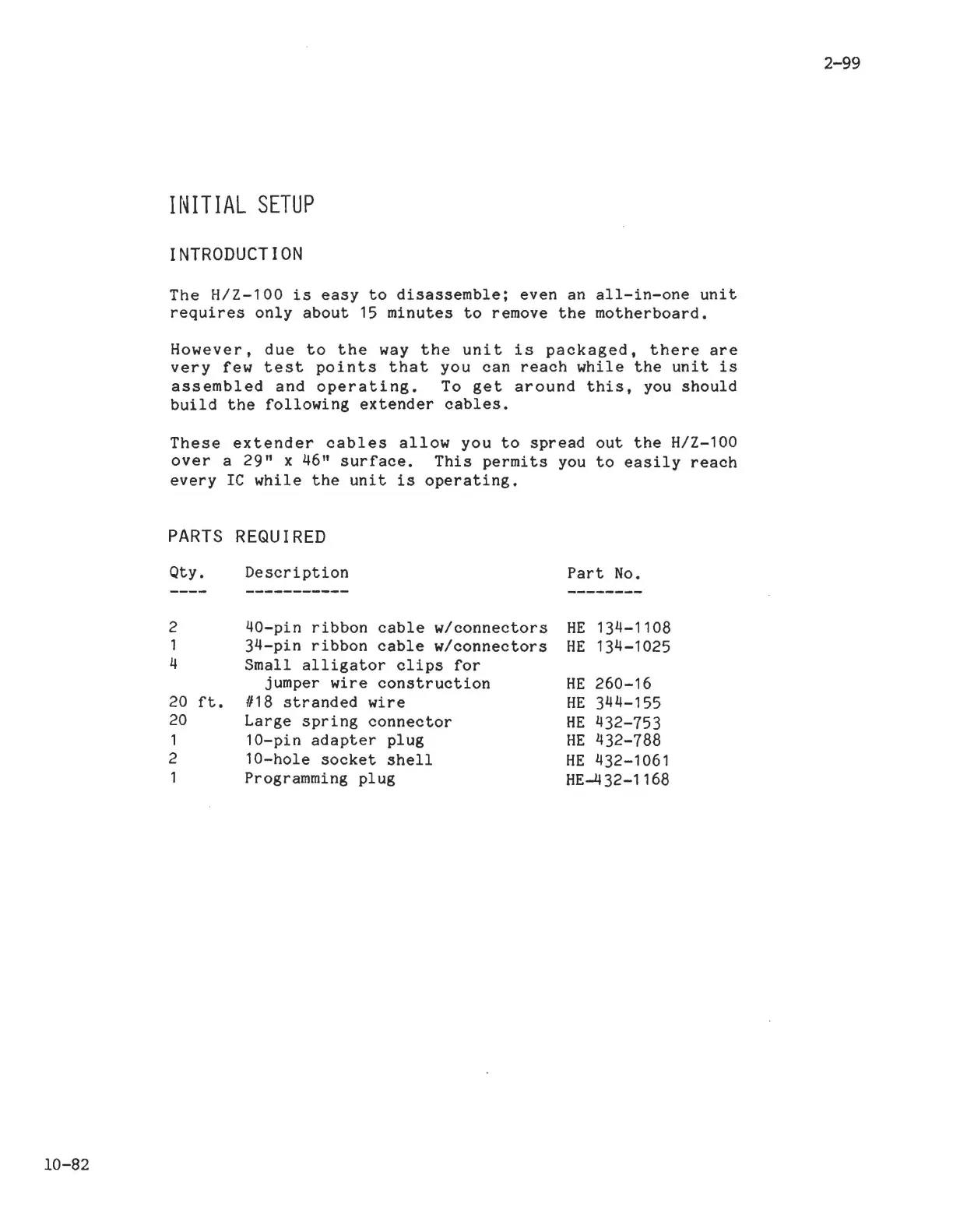

INITIAL SETUP
INTRODUCTION
The H/Z-100 is easy to disassemble; even an all-in-one unit
requires only about 15 minutes to remove the motherboard.
However, due to the way the unit is packaged, there are
very few test points that you can reach while the unit is
assembled and operating. To get around this, you should
build the following extender cables.
These extender cables allow you to spread out the H/Z-100
over a 29" x 46" surface. This permits you to easily reach
every Ie while the unit is operating.
PARTS REQUIRED
2-99
10-82
Qty.
2
1
4
20 ft.
20
1
2
1
Description
40-pin ribbon cable w/connectors
34-pin ribbon cable w/connectors
Small alligator clips for
jumper wire construction
#18 stranded wire
Large spring connector
10-pin adapter plug
10-hole socket shell
Programming plug
Part No.
HE 134-1108
HE 134-1025
HE 260-16
HE 344-155
HE 432-753
HE 432-788
HE 432-1061
HE-432-1168
