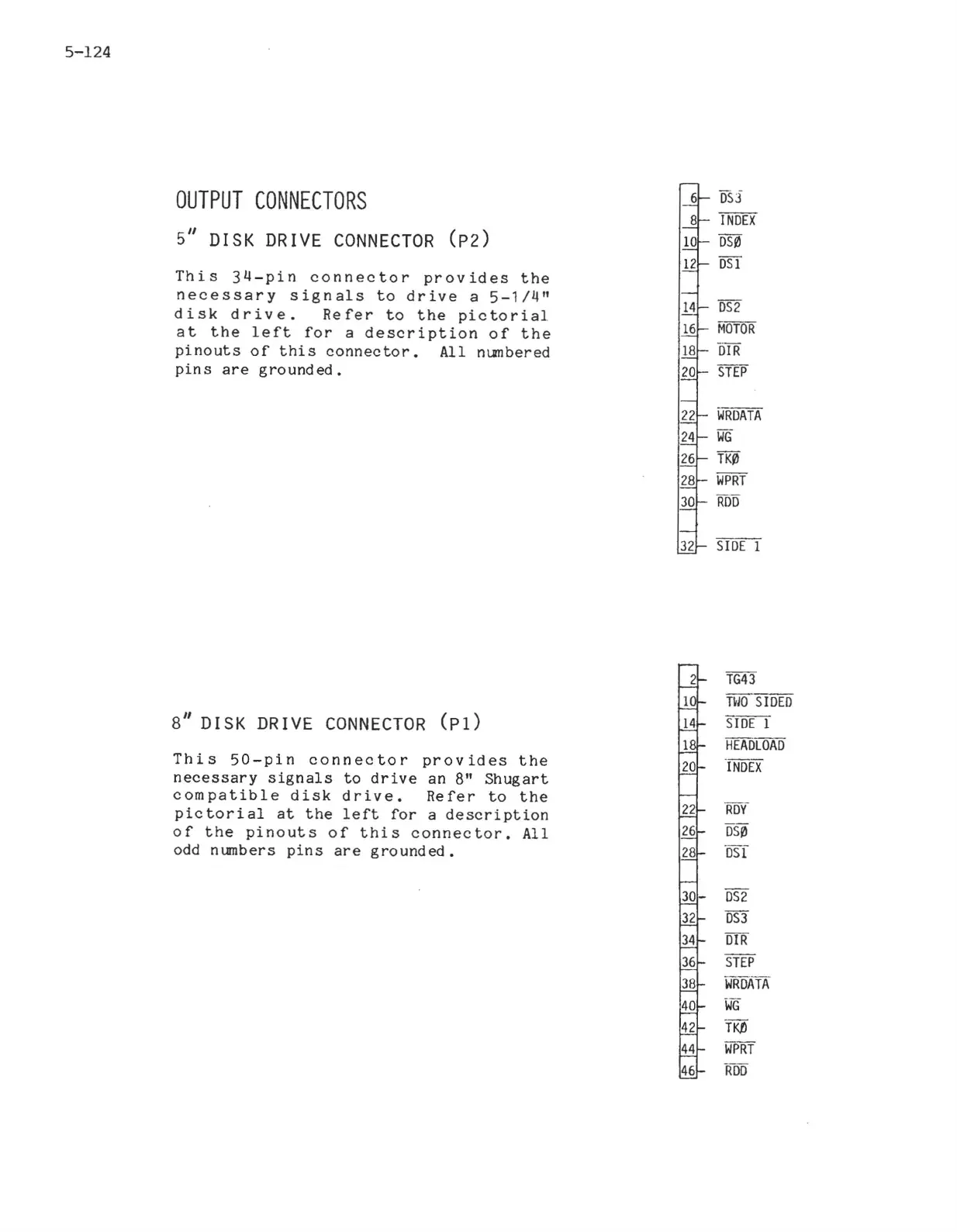

OUTPUT CONNECTORS
5" DISK DRIVE CONNECTOR (P2)
This 34-pin connector provides the
necessary signals to drive a 5-1/4"
disk drive. Refer to the pictorial
at the left for a description of the
pinouts of this connector. All numbered
pins are grounded.
8" DISK DRIVE CONNECTOR (PI)
This 50-pin connector provides the
necessary signals to drive an 8" Shugart
compatible disk drive. Refer to the
pic tori al at the left for a description
of the pinouts of this connector. All
odd numbers pins are grounded.
6 OS)
8 INDEX
10 DS0
12 DST
14 DS2
16 MOTOR
18 D1R
20 STEP
22 WRDATA
24 WG
26 TK~
28 WPRT
30 ROD
32 SIDE 1
TG43
HiO SIDED
SIDE 1
HEADlOAD
-INDEX
22 ROY
26
DS~
28
DS[
30 DS2
32 OS3
34 DIR
36 STEP
38
WRDATA
40 WG
42
T~
44
WPRT
46 ROD
