ANTENNA OR CABLECONNECTMON
m
O
z

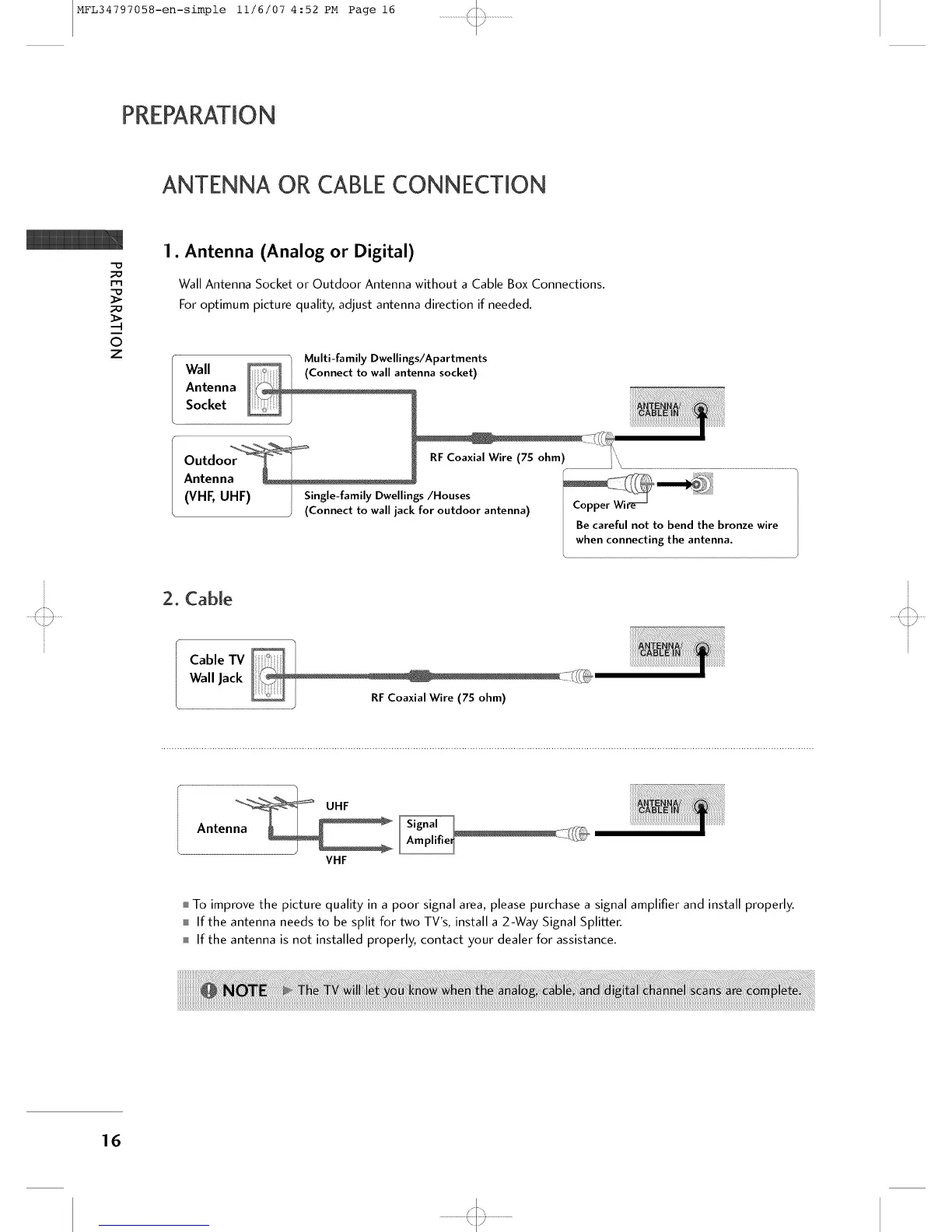

1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.
For optimum picture quality, adjust antenna direction if needed.
Wall
Antenna
Socket
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Outdoor _1 _ ++ RFCoaxial Wire (75 ohm) ....
Anten na _ __,
(VHF, UHF) :Single-family Dwellings/Houses .... '+"_ ..................
' _ (Connect to wall jacl_for outdoor antenna) Copper Wi_
Be careful not to bend the bronze wire
when connecting the antenna.
2. Cable
Cable TV
Wall Jack :iI_i_
................................................................................................_ RF Coaxial Wire (75 ohm)
.......................................................................... UHF
Antenna _ _
VHF
mTo improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
m If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
m If the antenna is not installed properly, contact your dealer for assistance.
