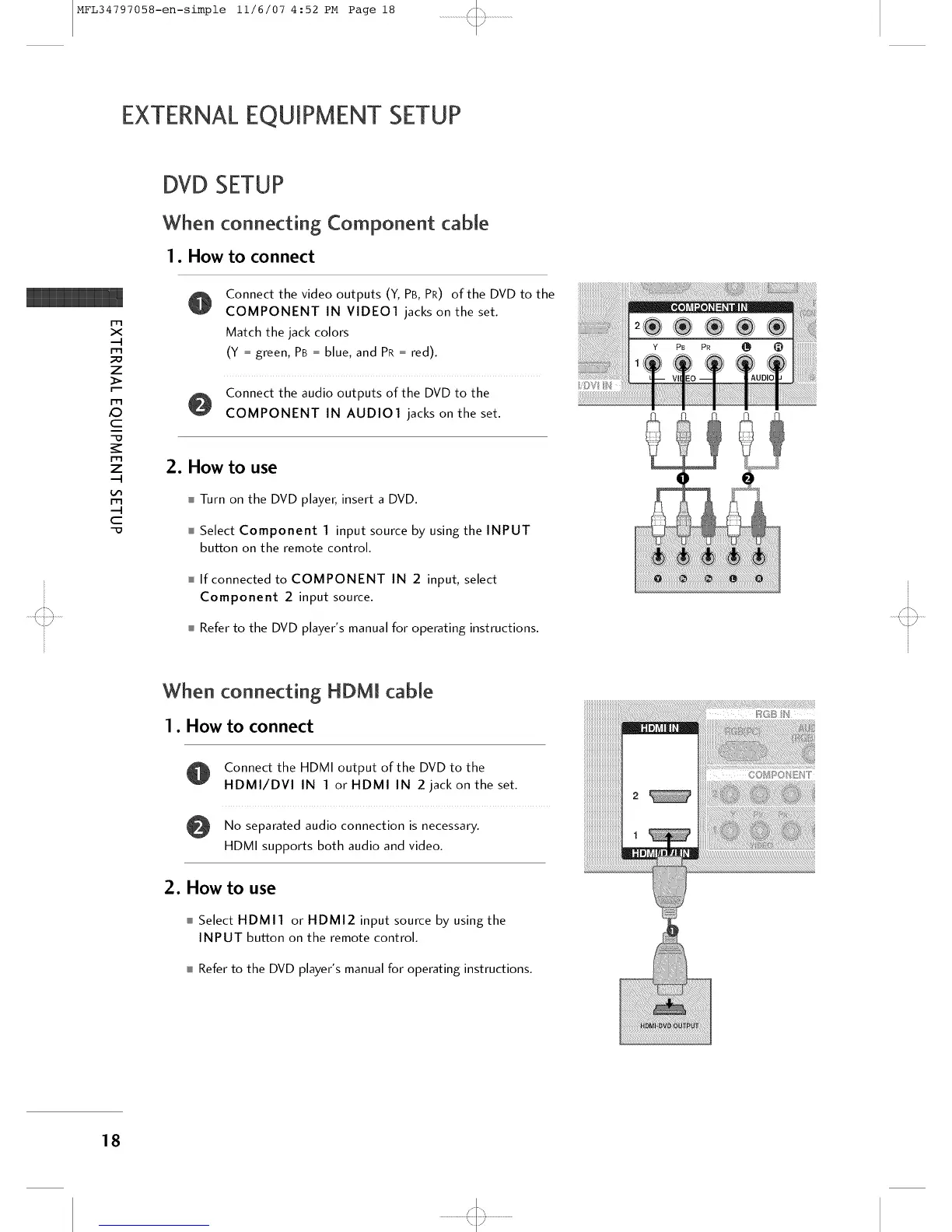

DVD SETUP
When connecting Component cable
1. How to connect
Connect the video outputs (Y, PB, PR) of the DVD to the
COMPONENT IN VIDEO1 jacks on the set.
Match the jack colors
(Y = green, PB = blue, and PR = red).
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO1 jacks on the set.
2. How to use
mTurn on the DVD player, insert a DVD.
mSelect Component 1 input source by using the INPUT
bution on the remote control.
m If connected to COMPONENT IN 2 input, select
Component 2 input source.
m Refer to the DVD player's manual for operating instructions.
i©v
When connecting HDM[ cable
1. How to connect
Connect the HDMI output of the DVD to the
HDMI/DVI IN 1 or HDMI IN 2 jack on the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
2. How to use
mSelectHDMI1 orHDMI2inputsourcebyusingthe
INPUT button on the remote control.
m Refer to the DVD player's manual for operating instructions.
