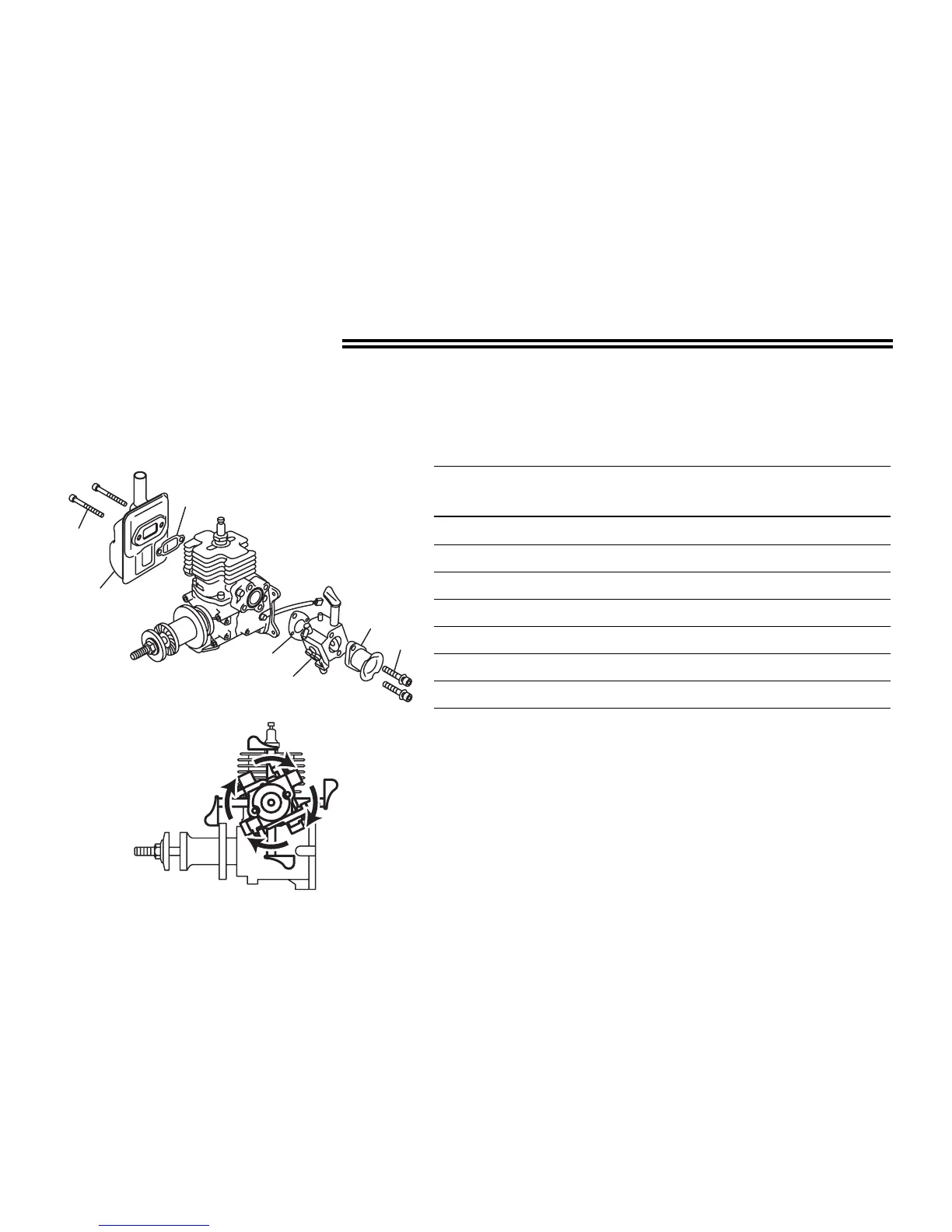

The carburetor, muffler, and air funnel
have not been assembled. Please
assemble them correctly, following the
diagram shown below.
ENGINE ASSEMBLY
No. Part Part no. Quantity
1. Bolt 01252-30540 2 8.8
2. Muffler 848EW015A0 1
3. Gasket 1140-13141 1
4. Gasket 848H7014C1 1
5.
Carburetor set
848EW09710 1
6. Air funnel 848ES08300 1
7. Bolt 8488455000 2 3.4
The carburetor can be mounted
anywhere 90 degrees apart on
the top, bottom, left or right.
Mount the carburetor at a place
where it is easy to do the linkage.
