Zenoah G200PU User Manual

9

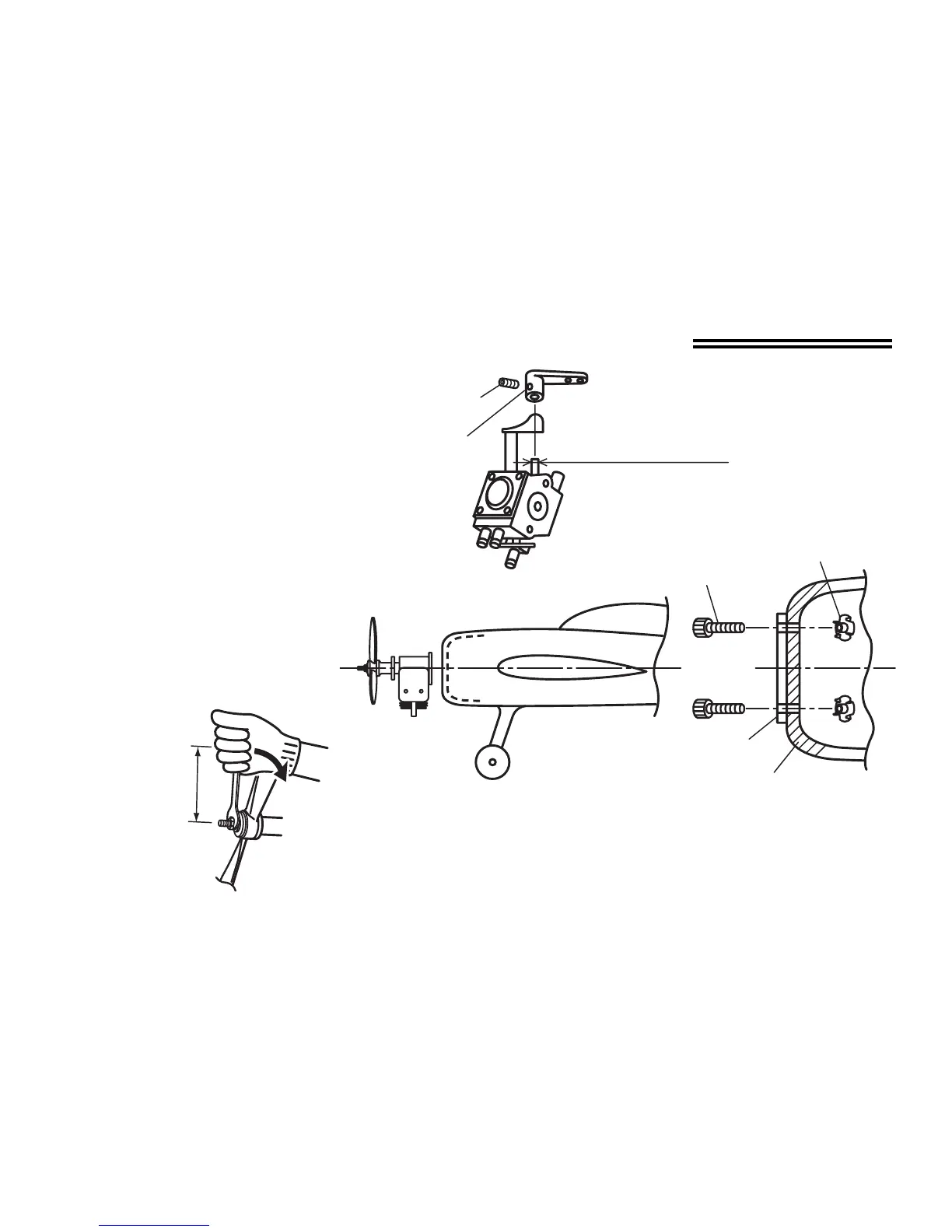

● Mount the throttle arm to
the carburetor’s throttle
shaft as shown in the
diagram or use the throttle
valve stopper plate located
at opposite side.
THROTTLE LINKAGE AND ENGINE MOUNTING
Throttle arm
(not supplied)
Stopper screw
Shaft diameter: 4mm
CG line CG line
M4 bolt x4
Claw nut x4
Engine mount
Fuselage bulkhead (firewall):
8mm or more, with hard board
Tightening torque:
90kg-cm
(8.8 N-m)
Gloves
9kg
10cm
● For propeller mounting, use the
wrench provided and make sure
not to over-tighten the bolts.
● Mount the engine as shown
in the diagram.
