Zephyr AK7636AS User Manual

13

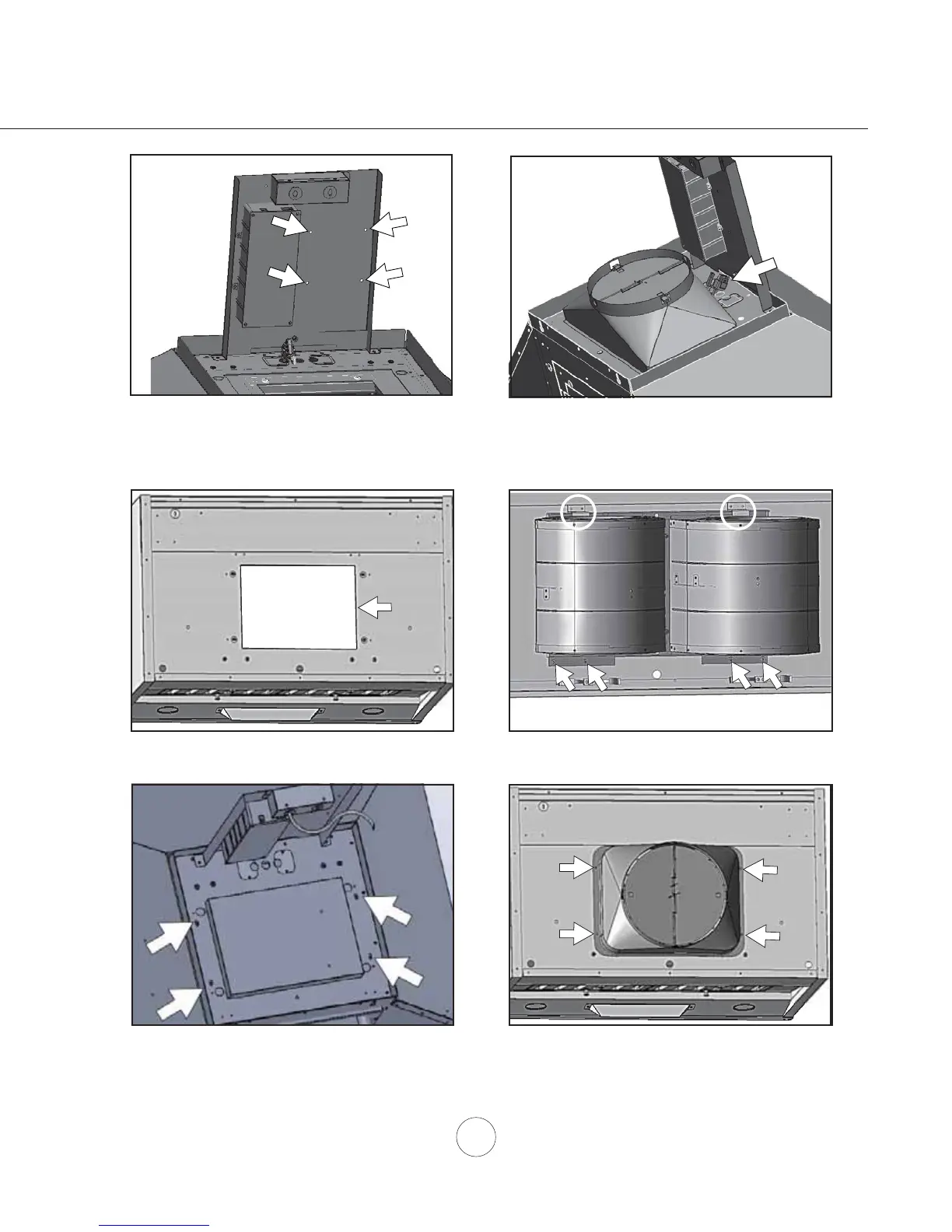

5. Knock out plate A for dual blower horizontal
ducting.
6. Position dual blower inside hood body. Attach by
VFUHZVSUHYLRXVO\UHPRYHGIURPVWHS
7. From inside hood body, position top cover plate
to top of hood body. From outisde hood body,
attach top cover plate to top of hood body using
[VFUHZV
8. Attach 10 inch round blower collar to back of
KRRGXVLQJ0[VFUHZV&RQQHFWEORZHU
wire extension cable to new blower and connect
both plugs from each blower to female plugs
behind switch panel.
A
Installation – PBD-1300A Dual Blower Horizontal Ducting
Follow Steps 1 through 4 on page 13, then continue PBD-1300A horiztantal ducting installation by following the
steps below.
7. Attach dual blower PCB box to electronics
EUDFNHWE\VFUHZV
8. Connect single and dual blower PCB blower
plug and white and black power cables.

Zephyr AK7636AS Specifications

General

Brand	Zephyr
Model	AK7636AS
Category	Ventilation Hood
Language	English
