Zephyr AK7636AS User Manual

12
www.zephyronline.com

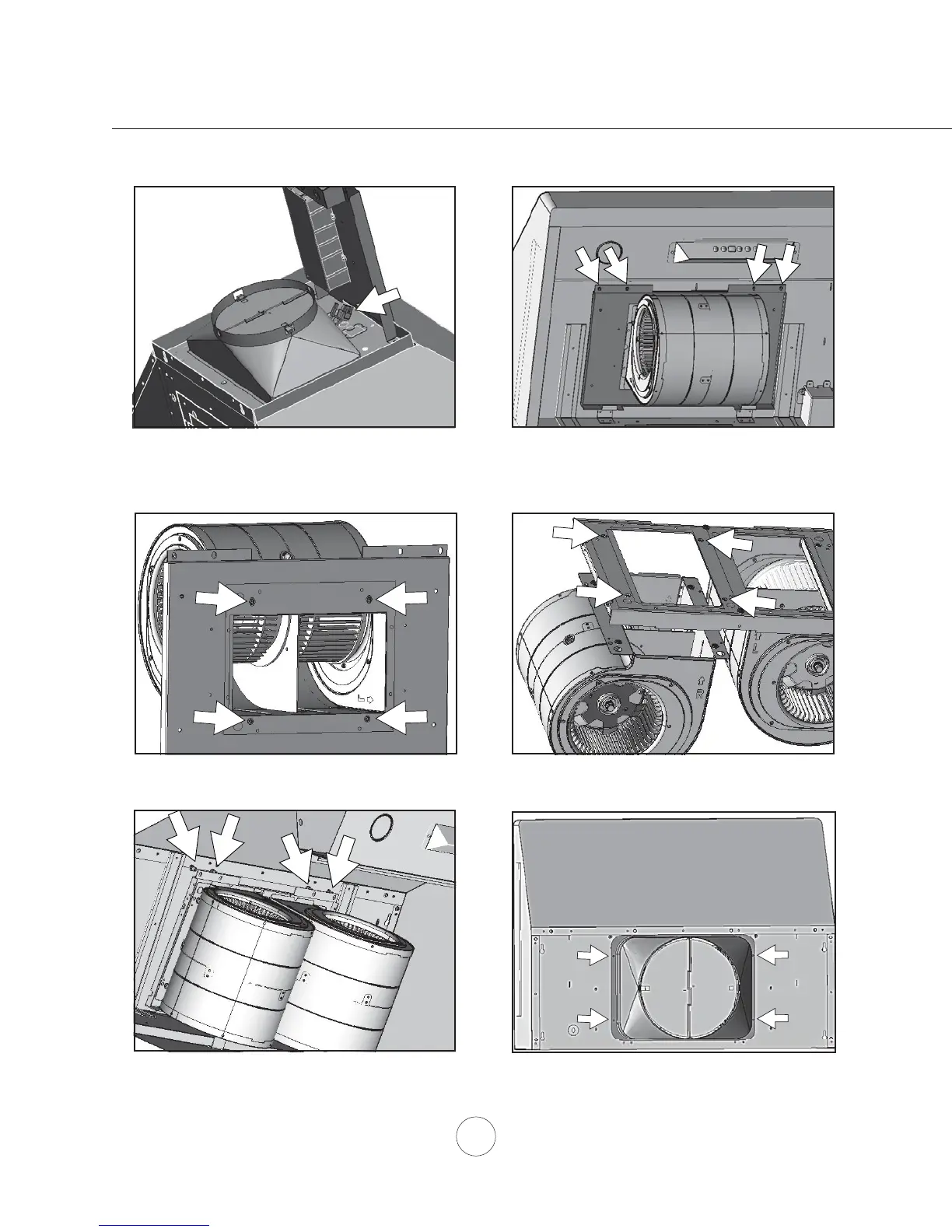

Installation – PBD-1300A Dual Blower Vertical Ducting
1. Disconnect blower plug and white and black
power cables.
 5HPRYHVFUHZVIURPLQWHULRURIKRRGERG\
attaching single blower plate to top of hood
body. Remove single blower and single blower
plate.
 5HPRYHVFUHZVDWWDFKLQJVLQJOHEORZHUWR
single blower plate.
 $WWDFKVLQJOHEORZHUWRGXDOEORZHUSODWHE\
previously removed screws from step 3.
This range hood is equipped standard with a single blower vertical duct option. To convert from single blower
vertical ducting to dual blower vertical ducting please following the instructions below.
5. Position dual blower inside hood body as
shown. Be sure to tuck dual blower plate into
EORZHUSODWHWDEV6HFXUHGXDOEORZHUE\
screws previously removed from step 2.
6. Attach 10” round blower collar to top of hood
ERG\E\0[VFUHZV&RQQHFWEORZHU
wire extension cable to new blower and connect
plugs from each blower to female plugs behind
switch panel.
