Monsoon I Use, Care, and Installation Guide
MONSOON I
INSERT
CORE
Installation Instructions

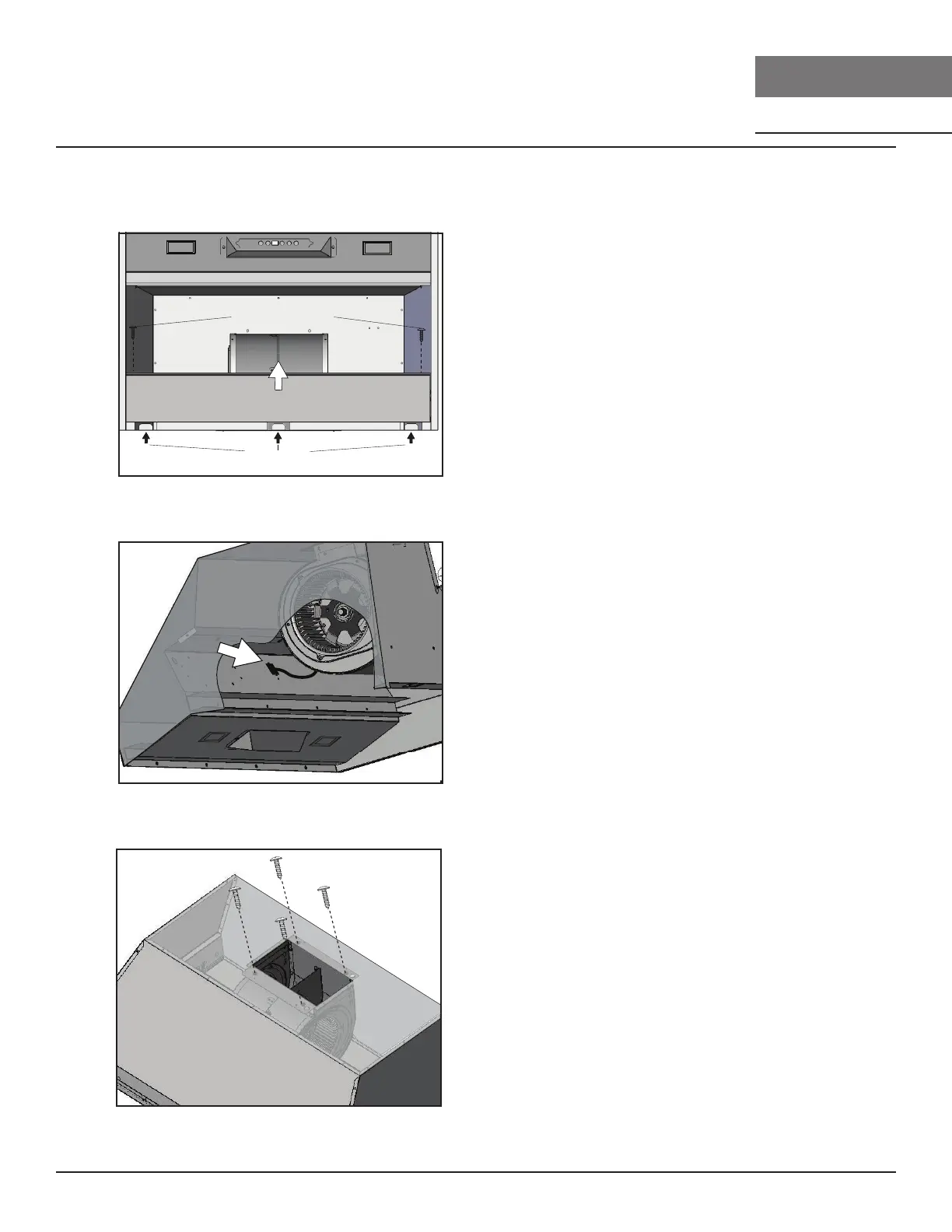

Horizontal Ducting Preparation
Locking Tabs
Bottom Panel Screws
2
1
4. Remove bottom panel by: 1)
Removing (2) screws from left and
right sides of bottom panel. 2)
Pulling bottom panel toward front
of liner to release from locking
tabs.
6. Remove blower from liner by
removing the (4) 3/16” x 3/8”
screws from the top of the liner.
Set screws aside for later usage.
5. Disconnect blower molex plug.
AK9228BS & AK9234BS Models Only

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
