Installation Instructions
Horizontal Ducting Preparation

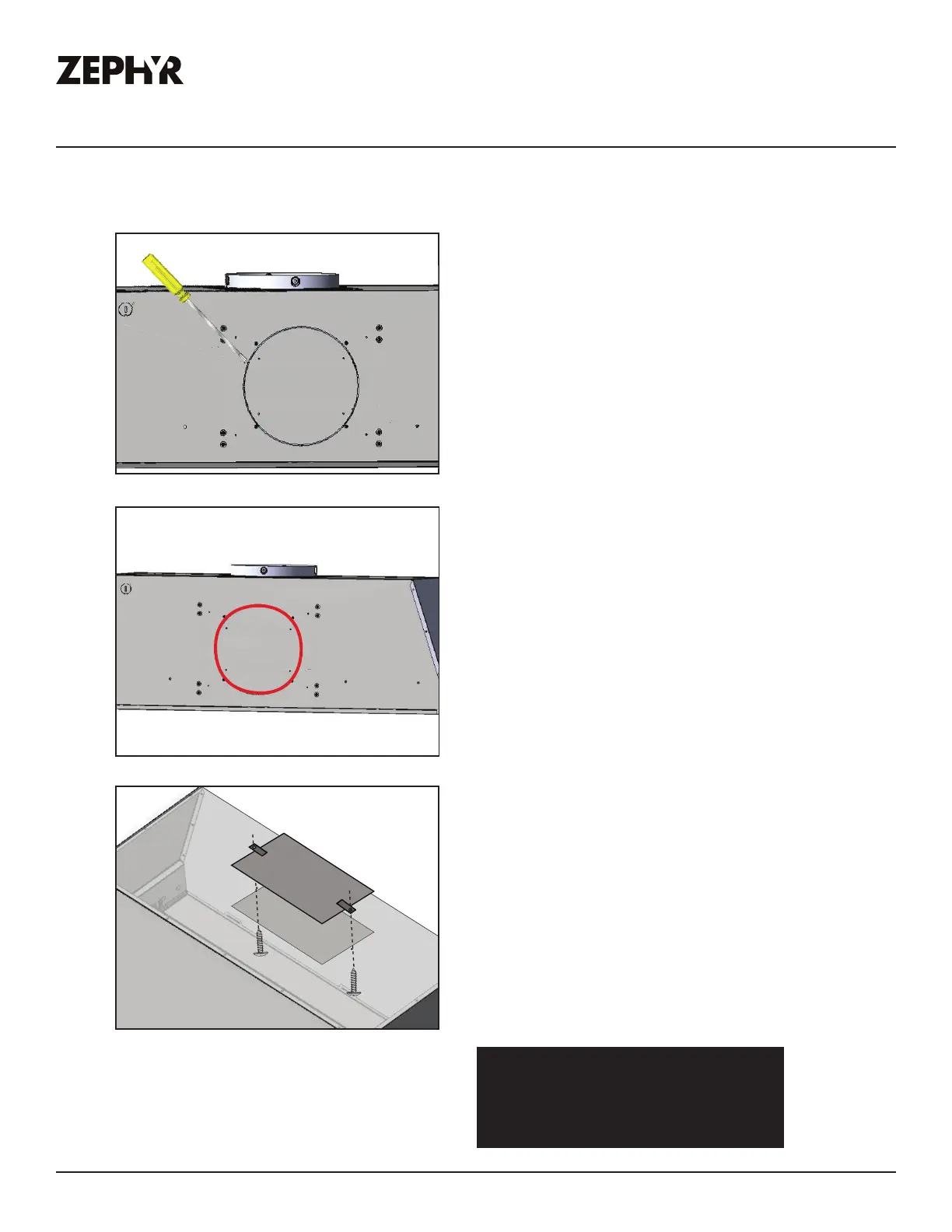

7. Using a flat head screwdriver,
remove 8” round knock-out
plates at the back of the liner.
9. Place top rectangular cover plate
over opening on top of the liner.
NOTE: Make sure the cover plate
tabs are on top of the cover plate
as shown. From inside the liner,
secure plate to top of liner with
(2) 3/16 x 3/8 screws.
8. Remove the round ducting knock-
out.
At this point, install the one piece liner
At this point, install the one piece liner
into the cabinet by following the steps
into the cabinet by following the steps
on Page 18, Step 4. After the liner
on Page 18, Step 4. After the liner
installation, continue to page 24.
installation, continue to page 24.
AK9228BS & AK9234BS Models Only

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
