Monsoon I Use, Care, and Installation Guide
MONSOON I
INSERT
CORE
Installation Instructions
Horizontal Ducting Preparation

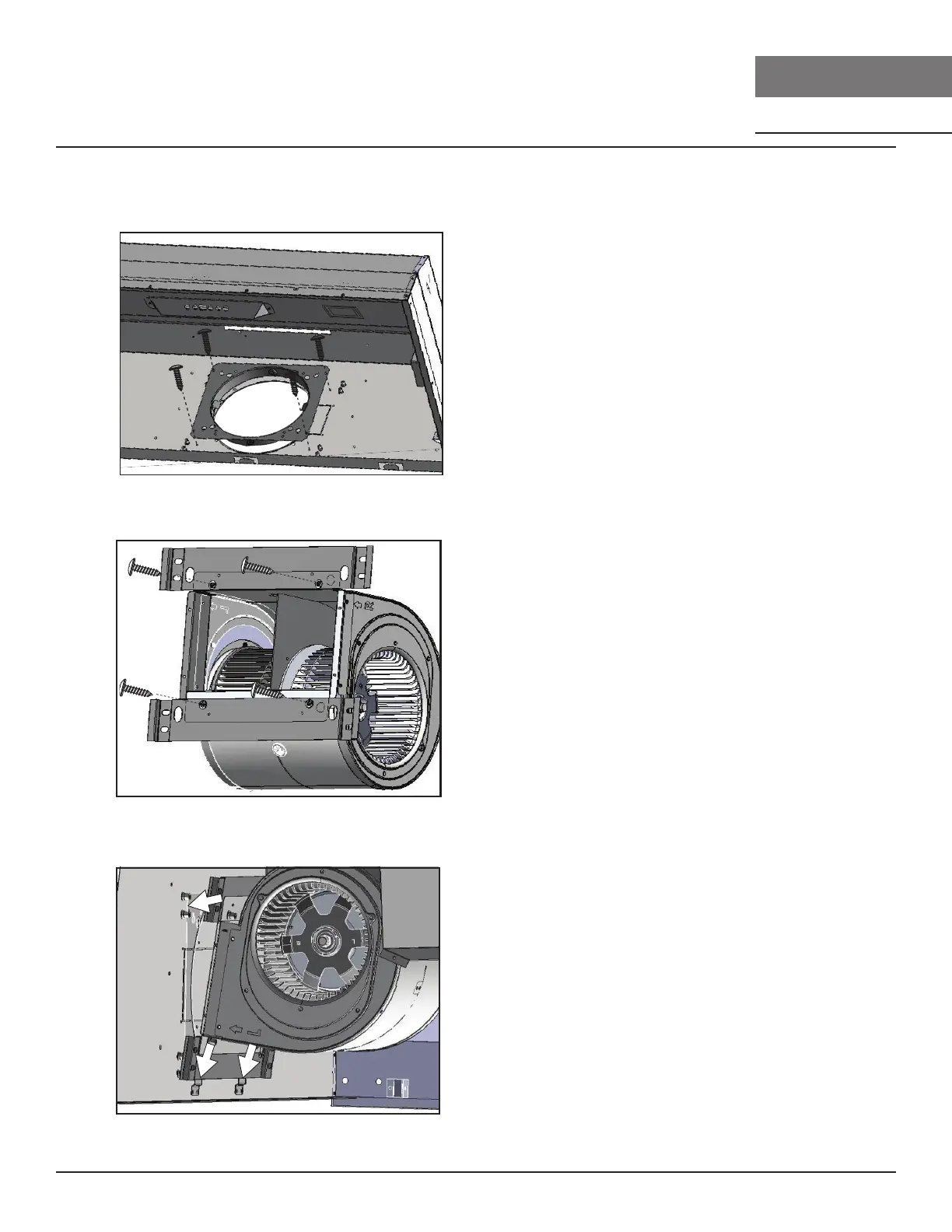

10. From inside the liner, push 8”
round adapter through the back
knock-out and secure to interior
back wall of liner with (4) M4 x
6mm screws.
12. Position blower inside liner body
as shown by: 1) Rest the bottom
horizontal ducting bracket on
the two support clips located on
the interior back wall of the liner.
2) Pivot top horizontal ducting
bracket to meet captive nuts on
interior back wall.
11. Secure (2) horizontal ducting
blower brackets to blower as
shown above by using the (4)
3/16” x 3/8” screws previously
removed from Page 22, Step 6;
(2) screws for each bracket.
AK9228BS & AK9234BS Models Only
1
2
1

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
