Zephyr Cyclone AK6500CS User Manual

15
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Electrical Supply
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
WARNING
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product.

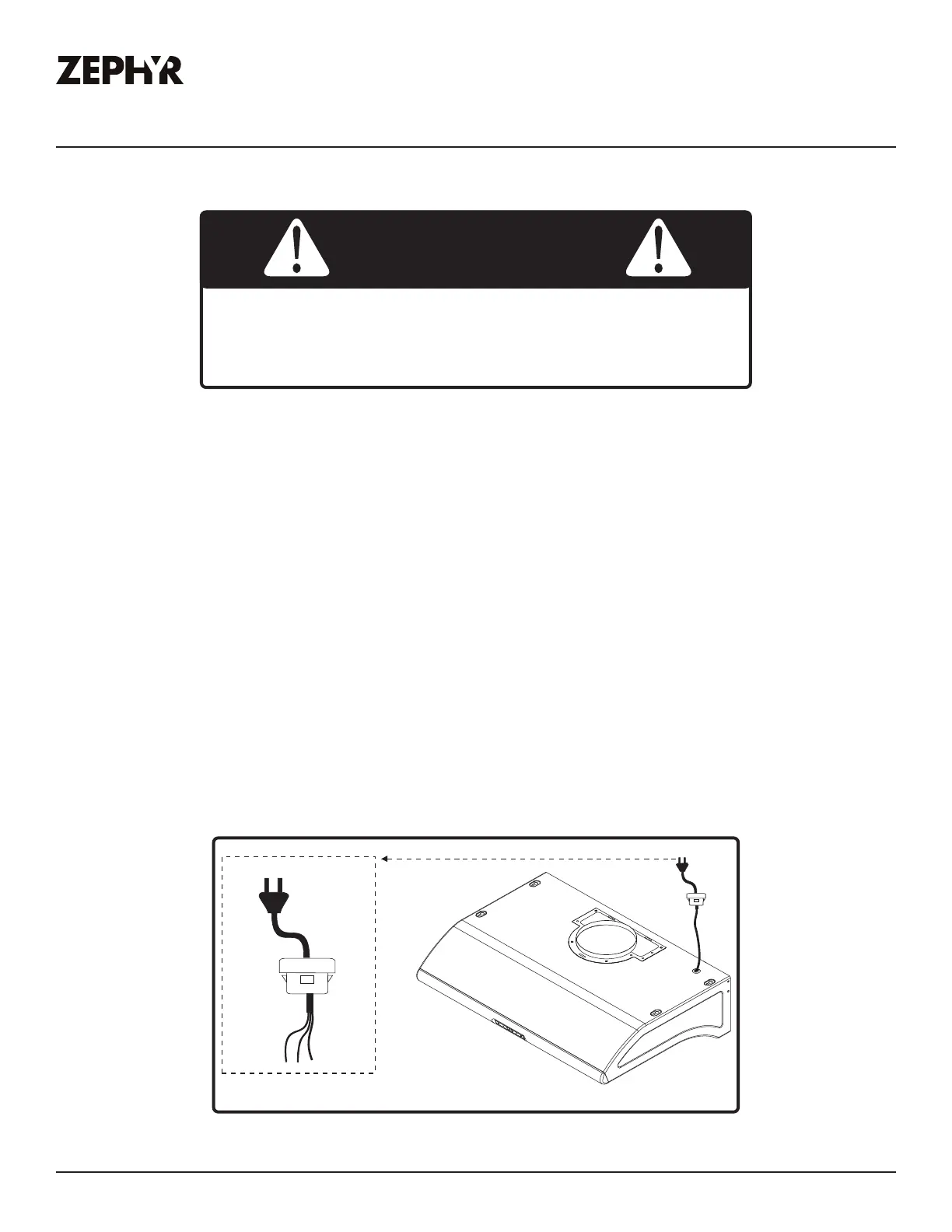

Cable Lock
A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)
Cable Lock
FIG. A

Zephyr Cyclone AK6500CS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	3
CFM	600 cubic feet per minute
Sones	5 sones
Control Type	slide
Delay Start	no
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	22 1/4 inches
Height	6 3/8 inches
Width	29 3/4 inches
Net Weight	30 pounds
