Zephyr Cyclone AK6500CS User Manual

31
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM

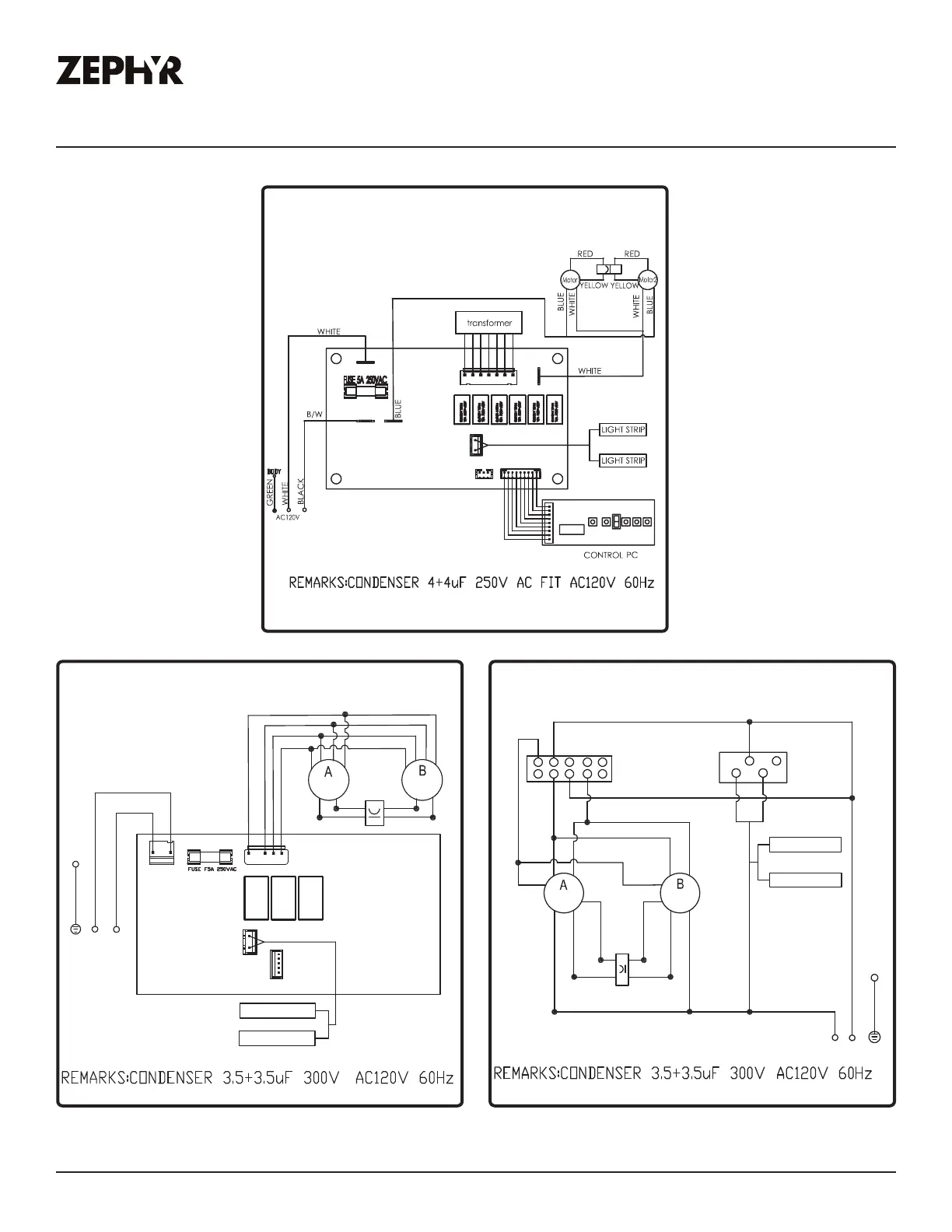

Wiring Diagram
AK25C WIRING DIAGRAM
WHITE
GREY
BROWN
BLUE
WHITE
GREY
BROWN
BLUE
MOTOR
MOTOR
RED
RED
YELLOW
YELLOW
WHITE
GREY
BROWN
BLUE
AC 120V
BODY
GREEN
WHITE
BLACK
LED
LED
AK65C WIRING DIAGRAM
B/W B/W
B/W
GREY
BLACK
BLACK
BLUE
BROWN
WHITE
YELLOW YELLOW
RED RED
WHITE
WHITE
GREEN
BODY
LED
LED
MOTOR MOTOR
AK21C WIRING DIAGRAM

Zephyr Cyclone AK6500CS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	3
CFM	600 cubic feet per minute
Sones	5 sones
Control Type	slide
Delay Start	no
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	22 1/4 inches
Height	6 3/8 inches
Width	29 3/4 inches
Net Weight	30 pounds
