Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions
Rectangular Vertical Ducting Preparation
Ź By default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting.
Ź By default the Cyclone is pre-configured for 6” round vertical ducting.

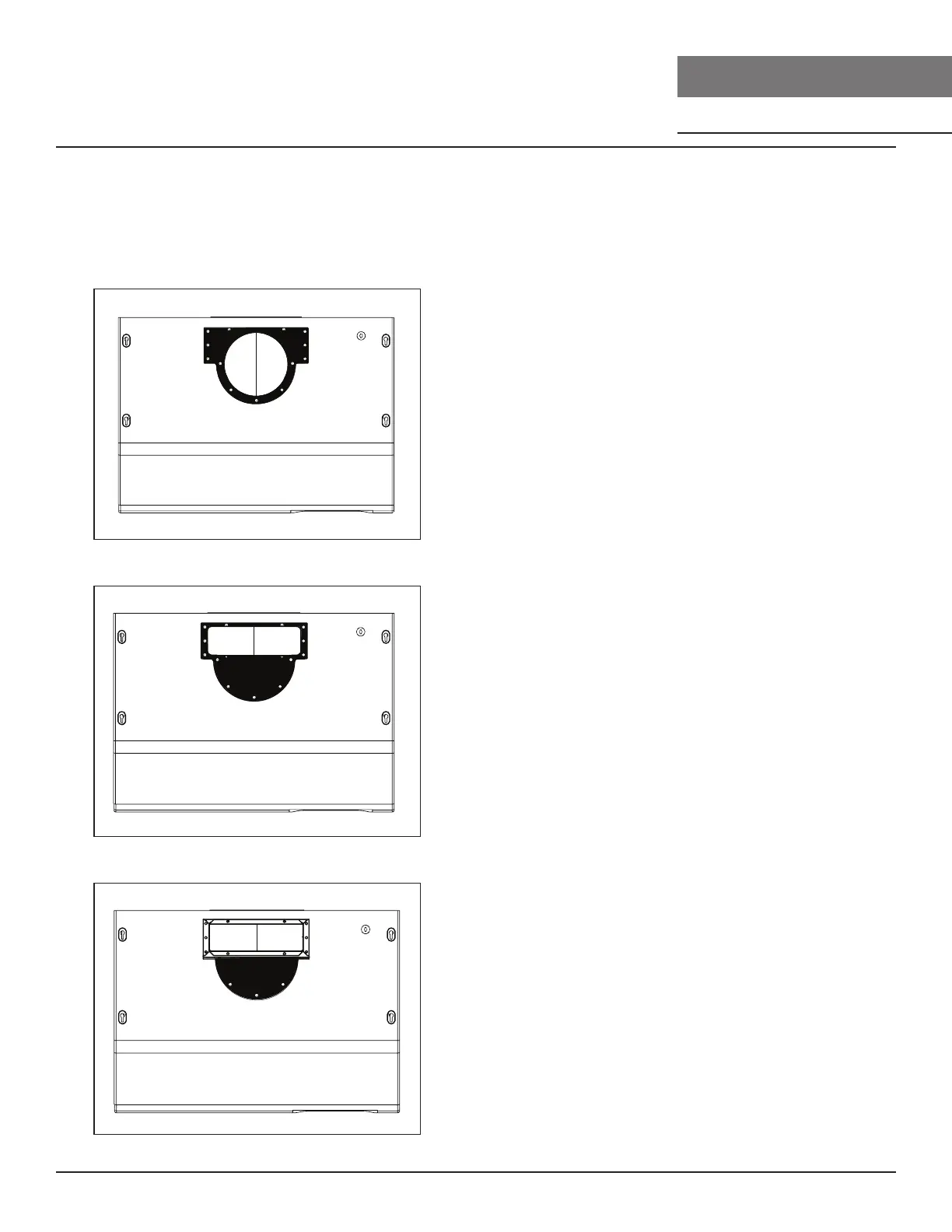

1. Using a Philips-head screwdriver
remove the screws and round vertical
transition adapter from top of hood
body.
2. Replace round vertical transition
adapter with rectangular transition
adapter. Do not secure to hood body
yet.
3. Place 3-1/4"x10" rectangular collar
on top of rectangular transition
adapter. Secure rectangular adapter
and rectangular collar to hood body
using the previously removed screws
from step 1.

Zephyr Cyclone AK6500CS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	3
CFM	600 cubic feet per minute
Sones	5 sones
Control Type	slide
Delay Start	no
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	22 1/4 inches
Height	6 3/8 inches
Width	29 3/4 inches
Net Weight	30 pounds
