General Maintenance
6.30
High Voltage Fuses
The high voltage fuses are located under the seat.
To access the high voltage fuses:
1. Remove the two bolts securing the seat to the motorcycle
frame.
2. Pull the seat rearward to gain access to the fuses.
3. Pull back sheathing to access fuse holders (if necessary).
4. Unscrew the fuse’s cover (1, 2, and 3).
5. Replace the fuse.
The high voltage fuse values are listed below:

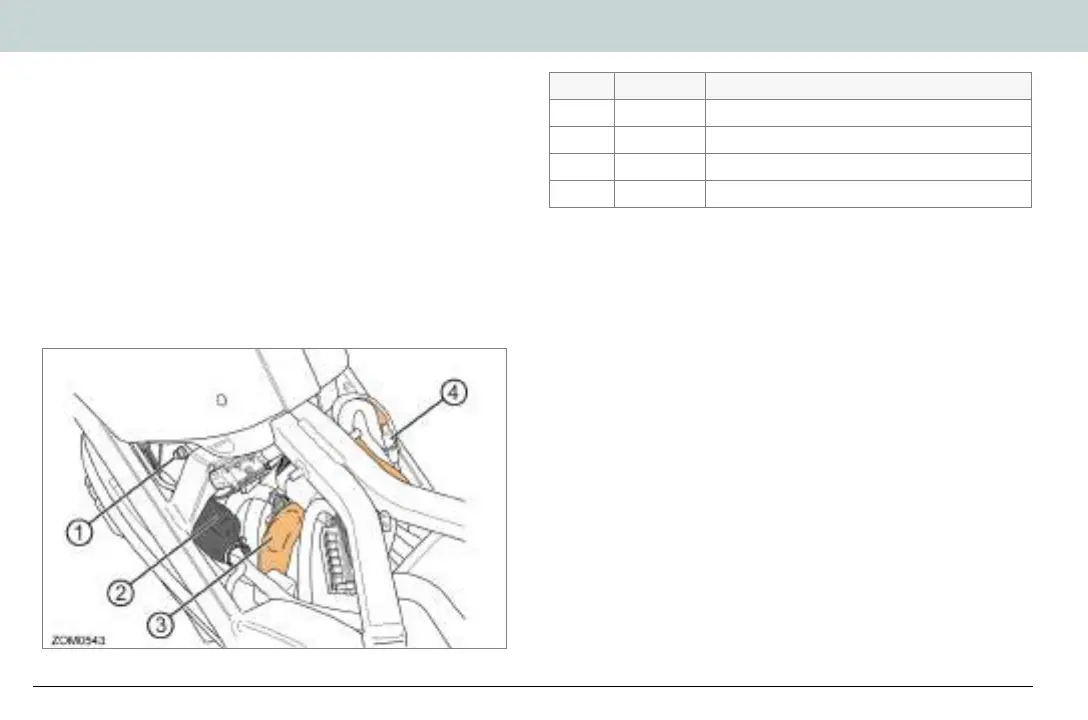

ZF14.4 illustrated. ZF7.2 similar except for fuse 1.
Note: If the charge fuse (4) needs replacement, contact your
Zero Motorcycles dealer.
FUSE RATING CIRCUITS CONTROLLED
1SPT3.15ALow Power B+
2 ABC 4A MBB (Main Bike Board)/Controller
3 ABC 4A DC/DC Converter
4 100A Charge Fuse (in-line)
