General Maintenance
6.29
ABS 12 Volt Fuse

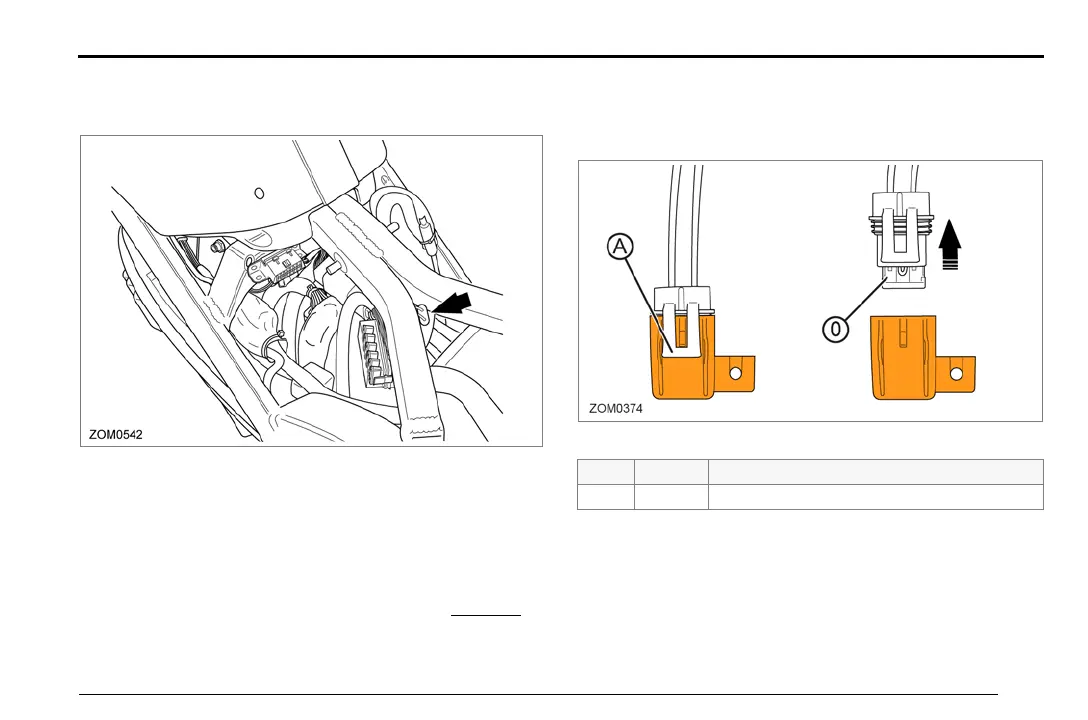

The ABS 12 volt fuse is located underneath the seat.
The ABS fuse holder (see arrow) is plugged into a
protective red cap. To release the fuse holder from the red
cap, gently pull the tab away from the cap and lift fuse
holder.
To access the 12 volt ABS fuse:
1. Remove two bolts securing the seat to the motorcycle
frame. Refer to Component Fasteners, see page 6.6.
2. Pull the seat rearward to gain access to the fuse.
3. Gently pull the tab (A) away from the red cap to release
the fuse holder and pull upwards.
4. Replace the fuse.
The 12-volt fuse value is listed below:
FUSE RATING CIRCUITS CONTROLLED
0 25A ABS-18 Motor
Zero Owner's Manual (S and DS).book Page 29 Wednesday, February 28, 2018 11:21 AM
