Power Pack and Charging
5.7
Using the Quick Charger
To charge using a Quick Charger:
Note: If you connect the on-board charger (see “
Charging
the Power Pack”, on page 5.4) prior to connecting the
Quick Charger, it will start charging without the ON and
OFF key cycle (in step 1 and number 7)
1. Ensure that the key switch is in the ON position.
2. Ensure that the Quick Charger is unplugged and
unpowered.

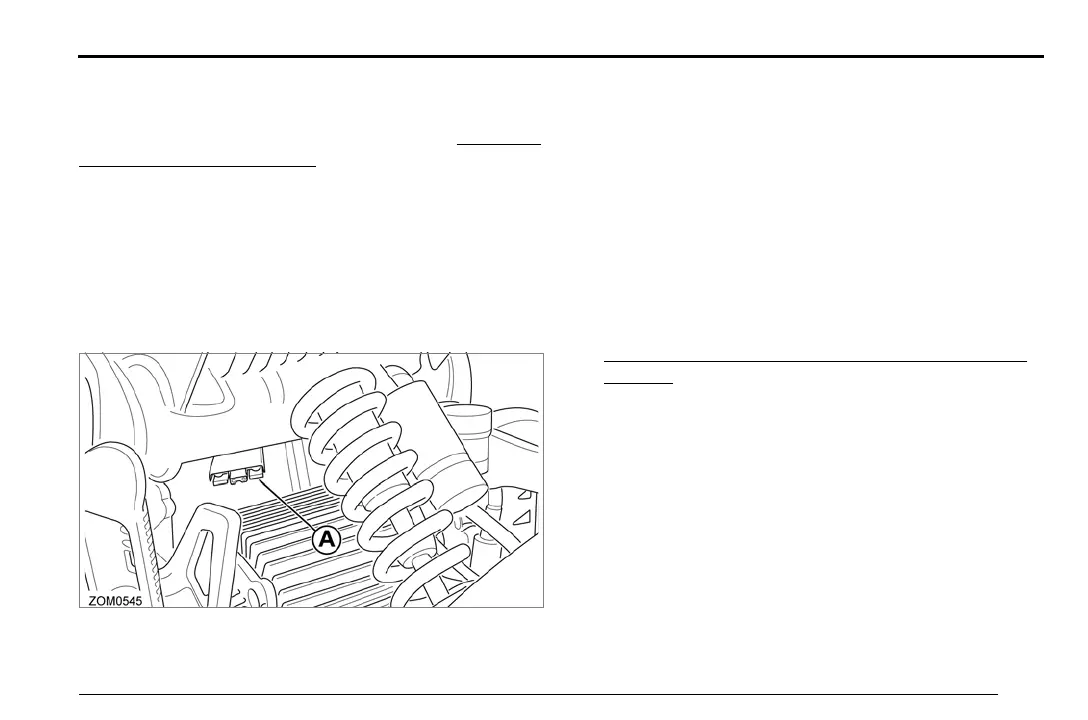

3. Locate the accessory charging connector (A) and
remove the protective cover.
4. Connect the Quick charger to the power pack
connector (A). You should hear the contactors close
and the current State of Charge (SOC) should display
on the dash.
5. Plug in the AC Power Cord to an AC power outlet.
Always connect the charger to a GROUNDED outlet.
When using an extension cord, avoid excessive voltage
drops by using a grounded, 3-wire, 12-AWG cord no
longer than 25 ft (7.6 m). The charger can be used on
120 V AC or 240 V AC current. The voltage does not
change the amount of time that the motorcycle takes to
charge.
6. Connect the AC Power Cord to the AC Power Cord
Connection on the off-board accessory charger. See
“
Quick Charging (Off-Board Accessory Charger)”, on
page 5.6.
7. The green charge LED on the dash will begin blinking
steadily to indicate charge flow. If the key switch was
turned to the ON position, now turn it to the OFF
position.
8. When the green charge LED becomes solid or the SOC
reads 100%, the battery system is fully charged,
disconnect the charger. When the power pack is fully
charged, disconnect the charger(s) and reinstall the
protective cover in order to reduce water ingress, which
can trigger dash warning lights.
