MAINTENANCE INSTRUCTIONS
F 233

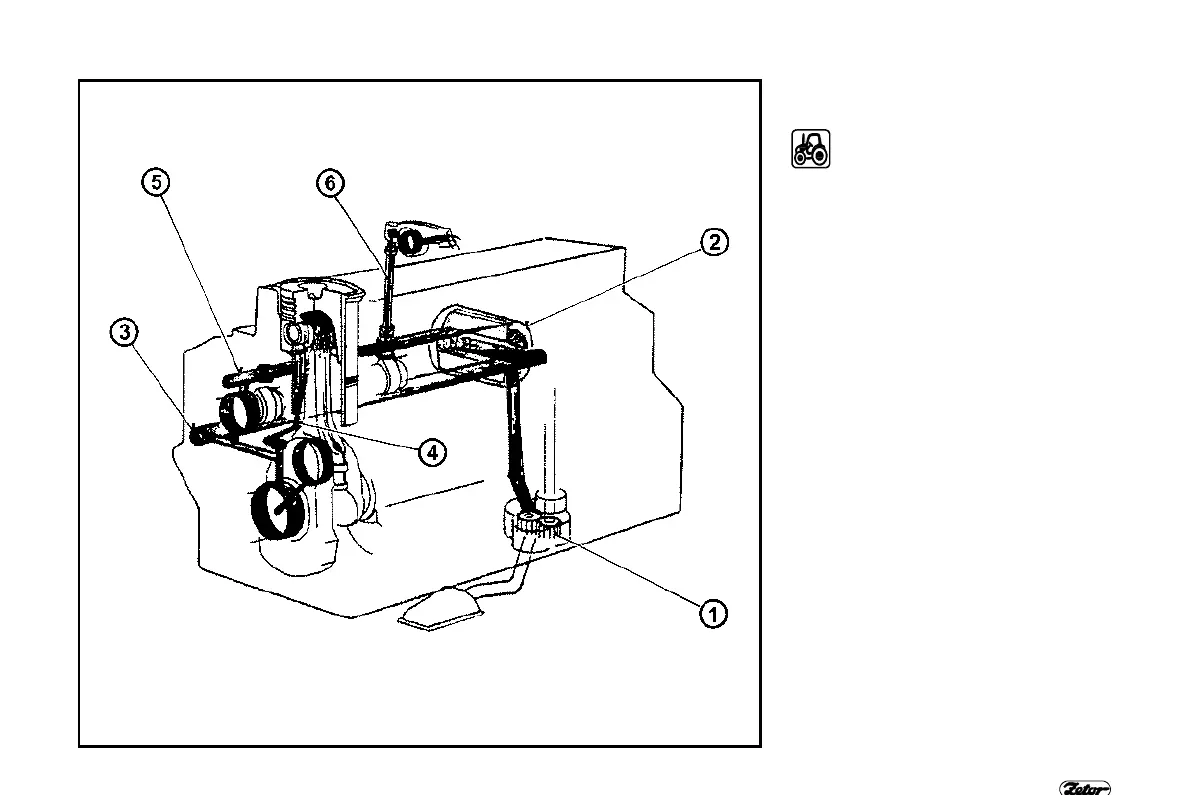

LUBRICATION SCHEMA OF SIX
CYLINDER ENGINE
Lubrication schema is valid for
six cylinder engine of tractor
Z
11641 Forterra.
1. Oil pump with reduction valve
2. Oil filter
3. Main oil channel
4. Spraying nozzle for cooling the
piston
5. Lubrication outlet
6. Oil channel for lubrication of rocker
arms
